Meinberg SyncBoxN2X/PP-2/CAP-1/DC

DC, 1xBNC-trigger,1xBNC-PPO, RS232

Varunummer: N2X/PP-2/CAP-1/DC
Alt. varenr: 00088888

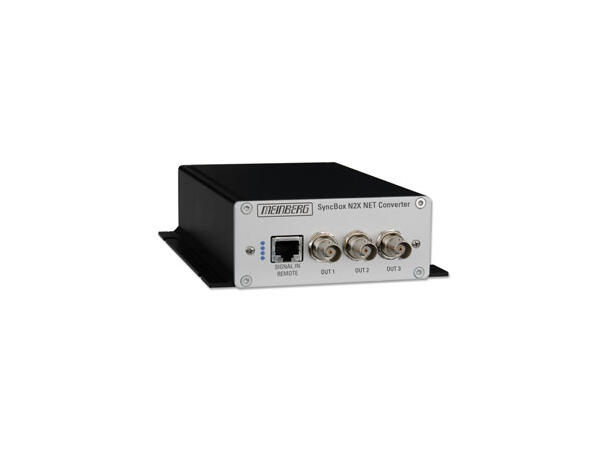

The SyncBox/N2X operates as a IEEE-1588 multicast slave clock or NTP client in a PTP / NTP network and with its interfaces this converter can synchronize many different systems. Our IEEE-1588 Grandmaster or LANTIME NTP Server, such the LANTIME M600, can be used as a reliable time source.


•The following output signals are available:
PPO (PPS, PPM, PPH, TC DCLS, DCF77 Marks)
10 MHZ
TC AM
Frequenz Synth. sine
serial time string (Meinberg, Uni Erlangen, NMEA)IEEE 1588-2008 (PTP V2) compatible ordinary clock
•Serial COM port for initial configuration and time telegrams
•Supported Protocols: IPv4, NTP, PTP / IEEE 1588-2008, DHCP
•Signal outputs with fiber optical ST connectors available
•Generates several different modulated (AM) and unmodulated (DCLS) IRIG time code signals
•10/100Base-T Ethernet interface - Power over Ethernet option available on request
•Configuration and montoring with MBGMON



SyncBox/N2X/PP-2/CAP-1/DC
PTP/NTP Client with Timecode/Pulse/Frequency outputs for network-based synchronization of devices that require RS232 timestrings,
1PPS or 1PPM pulses, IRIG timecodes (only DCLS) or frequencies. 1 x LAN interface 10/100 Mbit, RJ45 connector
----------------------------------------------------------------------------------------------
Signal Outputs:
1 x RS232 interface, independent, 9pin D-Sub female connector(rear),
with multi data formats timestrings.
----------------------------------------------------------------------------------------------
Signal Inputs:

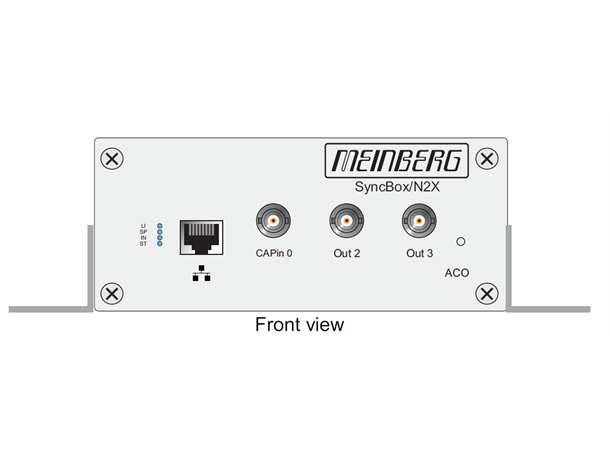

1 x Time-Trigger input via female BNC connector(front), resolution: 100 nsec, triggered by falling TTL slope
Time of trigger event readable via RS232-interface(9pin D-Sub female connector(rear)) or via network.
Signal Outputs:
2 x Pout 2-3
Pulse/synthesizer for frequencies from 0,1Hz up to 10MHz,
Programmable Pulses outputs (e.g. PPS; PPM; PPH...),
or Time Code DCLS, Pulse-width modulated output (IRIG/AFNOR/IEEE1344), TTL into 50 ohm, female BNC connector
----------------------------------------------------------------------------------------------
Technical specifications:

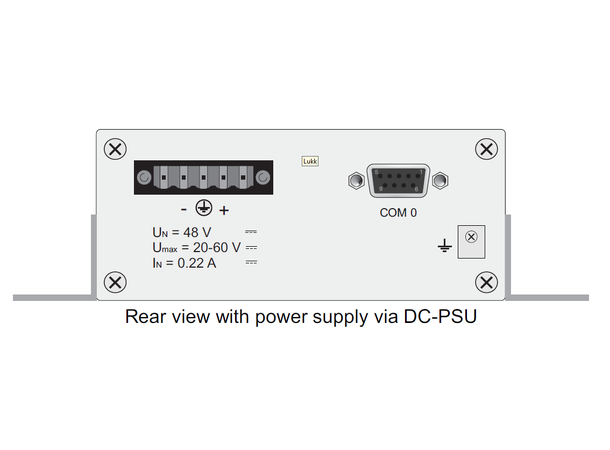

Power supply: 20-60 V DC
Power consumption: max. 5W
Built-up in an aluminium housing (105mm x 44mm x 165mm / width x height x depth)
----------------------------------------------------------------------------------------------
