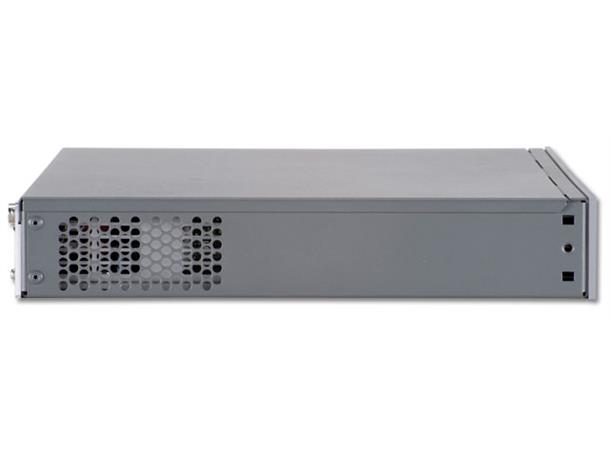

Meinberg LANTIME M200/GPS, Desktop

Inkl. GPS antenne og 20m RG58 kabel

Varunummer: M200/GPS
Meinberg LANTIME M200/GPS

Key Features
- Synchronization of NTP and SNTP compatible clients.
- Web based status and configuration interface (Demo) and console based graphical configuration utility.
- Supported networking protocols: IPv4, IPv6, HTTPS, HTTP, SSH, TELNET, SCP, SFTP, FTP, SYSLOG, SNMP.
- USB Port for installing firmware updates, locking frontpanel menu access and backup/restore of configuration and log files.
- Incl. GPS outdoor antenna and mounting brackets. Antenna can be connected with up to 300m of standard coaxial cable RG58.

Characteristics
Type of receiver: 6 channel GPS C/A-code receiver
Type of antenna: Remote powered GPS antenna/converter unit, up to 300m distance to antenna with RG58 and up to 700m distance with RG213 cable.
Display: LC-display, 2 x 40 characters, with backlight
Control elements: Eight push buttons to set up basic network parameters and to change receiver settings
Status info: Four bicolor LEDs showing status of:
- reference time
- time service
- network
- alarm

Network Interface: RJ-45 Network Connection 10/100 MBit

Power supply: 85-264VAC (50/60Hz)

Power consumption: 20W

Universal Serial Bus (USB) Ports: 1x USB Port in rear panel:
- install firmware upgrades
- backup and restore configuration files
- copy security keys
- lock/unlock front keys

Single-Board-Computer: i386 compatible 500Mhz CPU, 128 MB RAM

Operating System of the SBC: Linux with nano kernel (incl. PPSkit)
Network protocols OSI Layer 4 (transport layer): TCP, UDP
Network protocols OSI Layer 7 (application layer): TELNET, FTP, SSH (incl. SFTP, SCP), HTTP, HTTPS, SYSLOG, SNMP
Internet Protocol (IP): IP v4, IP v6
Network Autoconfiguration Support: IPv4: Dynamic Host Configuration Protocol - DHCP (RFC 2131)
IPv6: Autoconfiguration Networking - AUTOCONF
Network Time Protocol (NTP): NTP v2 (RFC 1119), NTP v3 (RFC 1305), NTP v4 (no RFC)
SNTP v3 (RFC 1769), SNTP v4 (RFC 2030)
MD5 Authentication and Autokey Key Management
Time Protocol (TIME): Time Protocol (RFC 868)
Daytime Protocol (DAYTIME): Daytime Protocol (RFC 867)
IEC 61850: Synchronization of IEC 61850 compliant devices by using SNTP
Hypertext Transfer Protocol (HTTP): HTTP/HTTPS (RC 2616)
Secure Shell (SSH): SSH v1.3, SSH v1.5, SSH v2 (OpenSSH)
Telnet: Telnet (RFC 854-RFC 861)

Form Factor: Desktop housing (335 x 45 x 240 mm)

Ambient temperature: 0 ... 50°C / 32 ... 122°F
Humidity: Max. 85%

Scope of supply: Included in delivery is our GPS antenna incl. converter unit, 20m GPS antenna cable (RG58) and product
documentation.

Technical Support: Meinberg offers free lifetime technical support via telephone or e-mail.

Warranty: Three-Year Warranty

Firmware Updates: Firmware is field-upgradeable, updates can be installed directly at the unit or via a remote network connection.

Software updates are provided free of charge, for the lifetime of your Meinberg product.

RoHS-Status of the product: This product is fully RoHS compliant

WEEE status of the product: This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself.

Additional Information: Additional information about the Meinberg LANTIME family of NTP time servers and other LANTIME models can be found on the LANTIME NTP Time Server Family Page .
