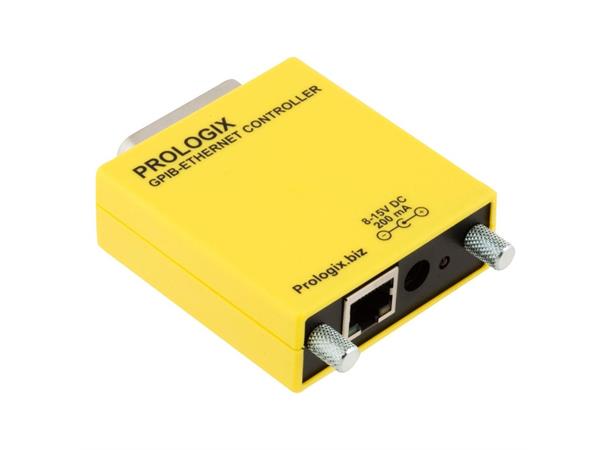

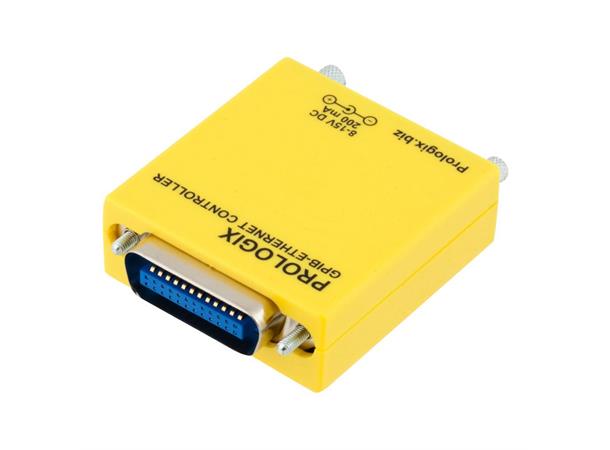

GPIB-ETHERNET (GPIB-LAN) Controller GPIB-ETHERNET (GPIB-LAN) Controller

GPIB-ETHERNET (GPIB-LAN) Controller

Varunummer: GPIB-ETHERNET
5 500,00

GPIB-ETHERNET (GPIB-LAN) Controller

Access your GPIB (HPIB) enabled instruments over a network (even over wireless) using the affordable, easy to use, Prologix GPIB-ETHERNET (GPIB-LAN) controller!

Use this controller to control, and to download screen plots and data from, Oscilloscopes, Logic Analyzers, Spectrum Analyzers and other GPIB (HPIB) enabled instruments. GPIB-ETHERNET (GPIB-LAN) controller uses the same command interface as the popular Prologix GPIB-USB controller. Being a network device there are no drivers to install.

Features

  • No drivers required
  • Support for multiple devices
  • No GPIB cable needed; controller plugs on to instrument
  • All software configuration. No switches
  • Standard RJ-45 and IEEE 488 (Male) connectors

Format: Ethernet
Supported OS: FreeBSD, Linux, Mac OS 8/9/X Mac OS 8/9/X, Windows 10, Windows 7, Windows 8, Windows 98/2000/XP/Vista

Supported Standards:
IEEE 488.1 IEEE 488.2
TCP Port:1234
