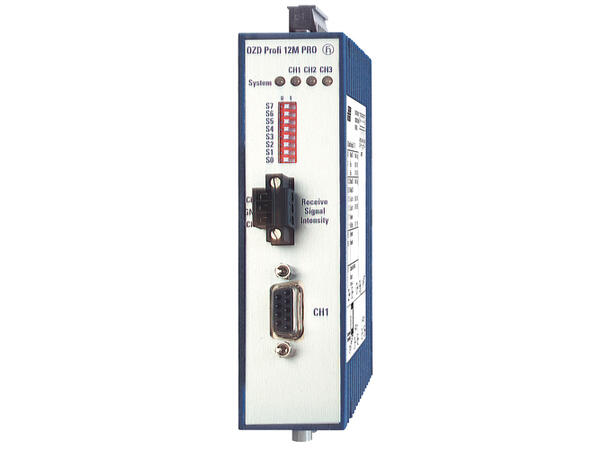

Hirschmann OZD PROFI 12M G11-1300 PRO 1 x ST, Singlemode fiber, ATEX Zone 2

Hirschmann OZD PROFI 12M G11-1300 PRO

1 x ST, Singlemode fiber, ATEX Zone 2

Varunummer: 943 906-221

Product description

Type:OZD Profi 12M G11-1300 PRO
Name:OZD Profi 12M G11-1300 PRO
Description:Interface converter electrical/optical for PROFIBUS-field bus networks; repeater function; for plastic FO; short-haul version
Part Number:943906221
Port type and quantity:1 x optical: 2 sockets BFOC 2.5 (STR); 1 x electrical: Sub-D 9-pin, female, pin assignment according to EN 50170 part 1
Signal Type:PROFIBUS (DP-V0, DP-V1, DP-V2 und FMS)

More Interfaces

Power Supply:5-pin terminal block, screw mounting
Signaling contact:5-pin terminal block, screw mounting

Network size - length of cable

Single mode fiber (SM) 9/125 µm:15 km, 10 dB link budget at 1310 nm; A = 0.5 dB/km
Multimode fiber (MM) 50/125 µm:10000 m, 12 dB link budget at 1310 nm; A = 1 dB/km
Multimode fiber (MM) 62.5/125 µm:10000 m, 12 dB link budget at 1310 nm; A = 1 dB/km

Power requirements

Current consumption:max. 200 mA
Input voltage range:-7 V ... +12 V
Operating Voltage:18 ... 32 VDC, typ. 24 VDC
Power consumption:4.8 W
Redundancy functions:redundant 24 V infeed

Power Output

Output voltage/output current (pin6):5 VDC +5%, -10%, short circuit-proof/90 mA

Ambient conditions

Operating temperature:0-+60 °C
Storage/transport temperature:-40-+70 °C
Relative humidity (non-condensing):10-95 %

Mechanical construction

Dimensions (WxHxD):35 x 163 x 119 mm
Weight:200 g
Housing Material:plastics
Mounting:DIN rail
Protection class:IP20

Approvals

Basis Standard:EU Conformity, AUS Conformity Australia
Safety of information technology equipment:cUL508
Hazardous locations:ISA 12.12.01 Class 1 Div. 2, ATEX Zone 2

Reliability

Guarantee:60 months (please refer to the terms of guarantee for detailed information)

Scope of delivery and accessories

Scope of delivery:device, start-up instructions
