RadiCentre®
The Heart of each EMC Test System

EMC test systems can vary from simple systems with one or two instruments to complex installations with many measurement instruments connected. In order to enable effective fully automated testing, these devices and measuring instruments, as well as the connection as made between amplifiers, power meters, antennas and measurement receivers, should be controlled in an automated manner. Where RadiMation® acts as the brain of the system; the
RadiCentre® heart of the system.

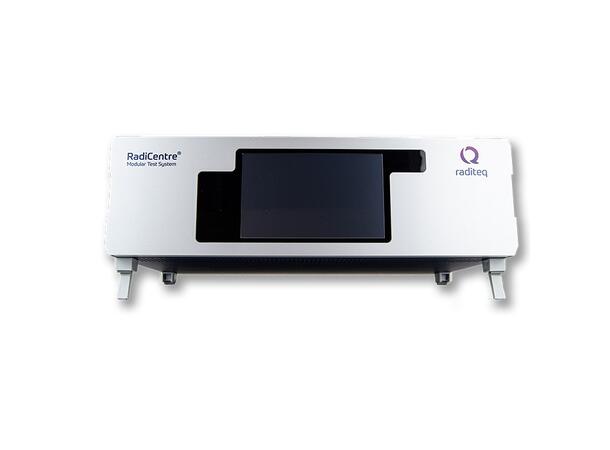

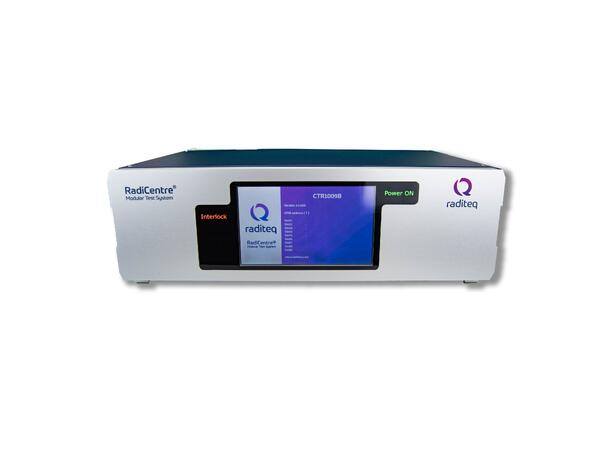

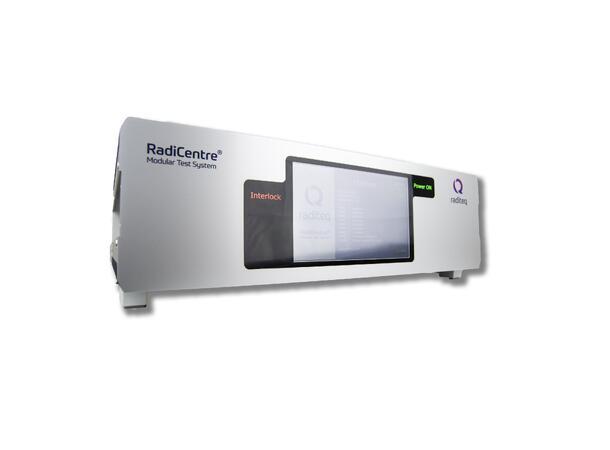

Flexible To cover both single instrument applications as well as small or large EMC test systems the RadiCentre® mainframe is available as an one-slot (CTR1001S), four-slot (CTR1004B) or nine-slot versions (CTR1009B). Each slot can be configured at the user’s choice with different plug-in cards, allowing any combination of cards.

Extensible The RadiCentre can be extended with a wide array of available plug-in cards.

• RadiSense®
• RadiField®
• RadiPower®
• RadiGen®
• RadiSwitch®
• RadiControl®
