KEY FEATURES

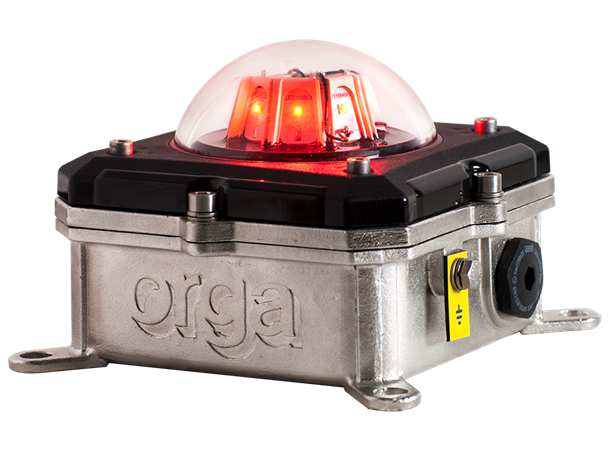

• Reliable low intensity aeronautical obstruction light
• Low cost of ownership
• Low power consumption
• Serviceable unit, parts are interchangeable
• Certified for Zone 1 and 2 areas with increased gas explosion hazard
• Compact design
• Impact resistant dome and stainless steel 316 body
• Spacious, easy to open cable connection compartment

STANDARDS/CERTIFICATION

• Complies with CAA-UK CAP 437; Offshore helicopter landing areas – Guidance on standards, 7th edition Feb 2013, chapter 4, paragraph 4.4
• Cenelec EN 60079-0, EN 60079-7 and EN 60079-18
• SIRA 12ATEX3066;
  ATEX Ex II 2G Ex e mb IIC T4 Gb
• IEC 60079-0, IEC 60079-7 and
  IEC 60079-18
• IECEx SIR 12.0026;
  Ex e mb IIC T4 Gb
• NCC 12.1223; Ex e mb IIC T4 Gb

PERFORMANCE CHARACTERISTICS

• Steady burning; red
• Intensity: 200cd minimum (between 5° – 8°) and 50cd minimum (between 0° – 15°)
• Horizontal coverage: 360°
• Vertical beam profile: as per CAP168 Chapter 4 and Appendix 6, Table 6A.1, Group B
• Colour chromaticity within the boundaries as specified by ICAO
• Light source: LED (100,000 hours average life)

ELECTRICAL CHARACTERISTICS

• Operating voltage: 100-254Vac; 50-60Hz
• Power consumption: 8W (9VA)
• Connection details: M4; two M25x1.5 cable entries
• Earth connection: internal M4 and external M6

PHYSICAL CHARACTERISTICS

• Dimensions (L x W x H):
  161 x 161 x 111mm
• Weight: 3.6kg
• Design degree of protection: IP66
• Operating temperature range:
  -40°C to +55°C
