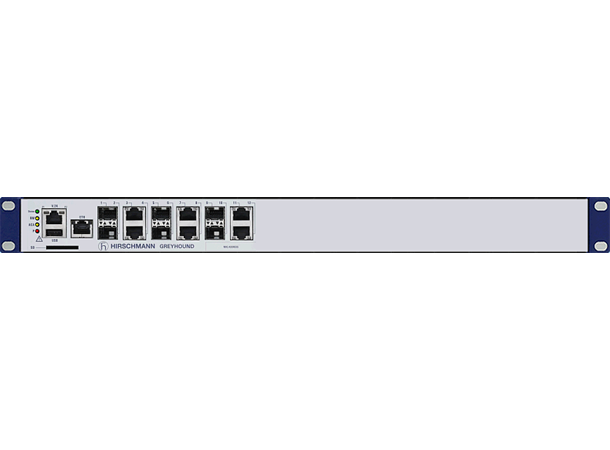

Greyhound 1042 Gigabit Ethernet Switch

GRS1042-6T6ZSLL01V9HHSE2A99XX.X.XX

Varenr: GRS1042-6T6ZSLL01-01

Product description

TypeGRS1042-6T6ZSLL01V9HHSE2A9906.0.
Order No.GRS1042-6T6ZSLL01V9HHSE2A9906.0.
DescriptionModular managed Industrial Switch, fanless design, 19" rack mount, according to IEEE 802.3

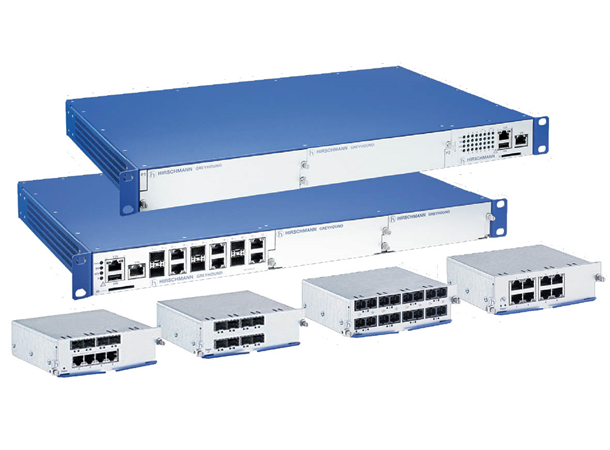

Port type and quantityPorts in total up to 28; Basic unit 12 fixed ports: 4 x GE/2.5GE SFP slot plus 2 x FE/GE SFP plus 6 x; FE/GE TX expandable with two media module slots; 8 FE/GE ports per module

More Interfaces

V.24 interface1 x RJ45 socket
USB interface1 x USB to connect the AutoConfiguration Adapter ACA22-USB
SD-card slot1 x SD card slot to connect the auto configuration adapter ACA31
Power supply/signaling contactPower supply1: Power supply 2 pin plug-in terminal block, signal contact 2 pin plug-in terminal block; Power supply2: Power supply 2 pin plug-in terminal block; Hot Swappable power supplies

Network size - length of cable

Twisted pair (TP)0 m ... 100 m
Multimode fiber (MM) 50/125 µmsee SFP modules
Multimode fiber (MM) 62.5/125 µmsee SFP modules
Single mode fiber (SM) 9/125 µmsee SFP modules
Single mode fiber (LH) 9/125 µm (long haul transceiver)see SFP modules

Network size - cascadibility

Line - / star topologyany

Power requirements

Operating voltagePower supply input 1: 24 - 48 VDC or 48 - 54 VDC PoE; possible power supply types C or P (PoE); Power supply input 2: 24 - 48 VDC or 48 - 54 VDC PoE; possible power supply types C or P (PoE)
Power consumptionBasic unit with one power supply 32 W
Power output in Btu (IT) h110

Mechanical construction

Dimensions (W x H x D)444 x 44 x 354 mm
Weight3600g
Protection classIP30
Mountingrack mount

Software

ManagementDual Software Image Support; TFTP; SFTP; SCP; LLDP (802.1AB); LLDP-MED; SSHv2; V.24; HTTP; HTTPS; Traps; SNMP v1/v2/v3; Telnet
DiagnosticsAddress Relearn Detection; MAC Notification; Signal Contact; Device Status Indication; TCPDump; LEDs; Syslog; Persistent Logging on ACA; Email Notification; Port Monitoring with Auto-Disable; Link Flap Detection; Overload Detection; Duplex Mismatch Detection; Link Speed and Duplex Monitoring; RMON (1,2,3,9); Port Mirroring N:1; RSPAN; SFLOW; VLAN Mirroring; System Information; Self-Tests on Cold Start; Copper Cable Test; SFP Management; Configuration Check Dialog; Switch Dump; Snapshot Configuration Feature
ConfigurationAutomatic Configuration Undo (roll-back); Configuration Fingerprint; Text-based Configuration File (XML); BOOTP/DHCP Client with Auto-Configuration; DHCP Server: per Port; DHCP Server: Pools per VLAN; AutoConfiguration Adapter ACA21/22 (USB); HiDiscovery; DHCP Relay with Option 82; Command Line Interface (CLI); CLI Scripting; Full-featured MIB Support; Web-based Management; Context-sensitive Help
SecurityMAC-based Port Security; Port-based Access Control with 802.1X; Guest/unauthenticated VLAN; Integrated Authentication Server (IAS)|RADIUS VLAN Assignment; RADIUS Policy Assignment; Multi-Client Authentication per Port; MAC Authentication Bypass; DHCP Snooping; IP Source Guard; Dynamic ARP Inspection; Denial-of-Service Prevention; Ingress MAC-based ACL; Egress MAC-based ACL; Ingress IPv4-based ACL; Egress IPv4-based ACL; Time-based ACL; VLAN-based ACL; Ingress VLAN-based ACL; Egress VLAN-based ACL; ACL Flow-based Limiting; Access to Management restricted by VLAN; Device Security Indication; Audit Trail; CLI Logging; HTTPS Certificate Management; Restricted Management Access; Configurable Password Policy; Configurable Number of Login Attempts; SNMP Logging; Multiple Privilege Levels; Local User Management; Remote Authentication via RADIUS; User Account Locking
Redundancy functionsHIPER-Ring (Ring Switch); HIPER-Ring over Link Aggregation; Link Aggregation with LACP; Link Backup; Media Redundancy Protocol (MRP) (IEC62439-2); MRP over Link Aggregation; Sub Ring Manager; RSTP 802.1D-2004 (IEC62439-1); RSTP Guards; VRRP; VRRP Tracking; HiVRRP (VRRP enhancements)
Industrial ProfilesEtherNet/IP protocol, IEC61850 protocol (MMS Server, Switch Model), ModbusTCP, PROFINET IO Protocol
Time synchronisationPTPv2 Transparent Clock two-step; PTPv2 Boundary Clock; Buffered Real Time Clock; SNTP Client; SNTP Server
MiscellaneousPoE (802.3AF); PoE+ (802.3AT); PoE+ Manual Power Management; PoE Fast Startup; Manual Cable Crossing; Port Power Down
SwitchingTraffic Shaping; Independent VLAN Learning; Fast Aging; Static Unicast/Multicast Address Entries; QoS / Port Prioritization (802.1D/p)|TOS/DSCP Prioritization; Interface Trust Mode; CoS Queue Management; IP Ingress DiffServ Classification and Policing; IP Egress DiffServ Classification and Policing; Queue-Shaping / Max. Queue Bandwidth; Flow Control (802.3X)|Egress Interface Shaping; Ingress Storm Protection; VLAN (802.1Q)|Protocol-based VLAN; VLAN Unaware Mode; Voice VLAN; MAC-based VLAN; IP subnet-based VLAN; IGMP Snooping/Querier per VLAN (v1/v2/v3)|Unknown Multicast Filtering; Multiple VLAN Registration Protocol (MVRP)|Multiple MAC Registration Protocol (MMRP)|Multiple Registration Protocol (MRP)

Ambient conditions

Operating temperature0 ºC ... 60 ºC
Storage/transport temperature-40 ºC ... 70 ºC
Relative humidity (non-condensing)5 % ... 95 %

Mechanical stability

IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)8 kV contact discharge, 15 kV air discharge
EN 61000-4-3 electromagnetic field35 V/m (80-2700 MHz); 1 kHz, 80% AM
EN 61000-4-4 fast transients (burst)4 kV power line, 4 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line, IEEE1613: power line 5 kV (line/earth)
EN 61000-4-6 conducted immunity3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
EN 61000-4-16 mains frequency voltage30 V, 50 Hz continous; 300 V, 50 Hz 1 s

EMC emitted immunity

FCC CFR47 Part 15FCC 47 CFR Part 15 Class A
EN 55022EN 55022 Class A

Approvals

Safety of industrial control equipmentEN61131, EN60950
SubstationIEC 61850-3, IEEE 1613

Scope of delivery and accessories

Scope of deliveryDevice, terminal block, operating manual
Accessories to order separatelyTerminal Cable, Network Management Industrial HiVision, ACA22, ACA31, SFP
