Hirschmann EAGLE30 Security Firewall EAGLE30-04022O6TT999SKKV9HSE3F

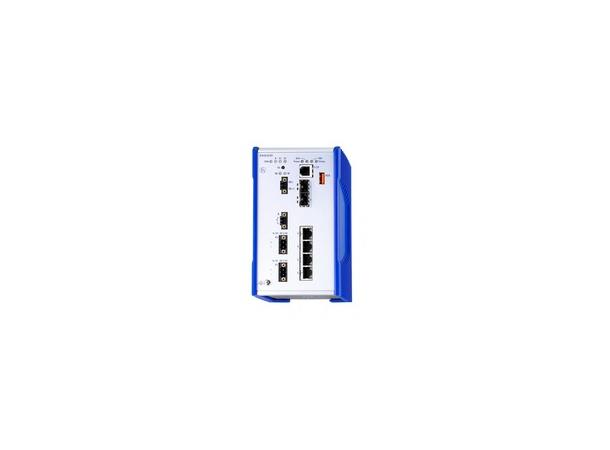

Hirschmann EAGLE30 Security Firewall


Varenr: EAGLE30-04022O6TT-01

Product description

DescriptionIndustrial firewall and security router, DIN rail mounted, fanless design. Fast Ethernet, Gigabit Uplink type. 4 x 10/100 Mbit/s Ethernet Ports, 2 x 100/1000 Mbit/s Ethernet Ports, 2 x SFP slots, Twisted Pair / RJ45.
Port type and quantity6 ports in total, Ports Fast Ethernet: 4 x 10/100BASE TX, RJ45 ; Gigabit Ethernet Ports: 2 ; Uplink Ports: 2 x SFP slot

More Interfaces

Power supply2 x plug-in terminal block, 3-pin
Signaling contact1 x plug-in terminal block, 2-pin
Digital Input1 x plug-in terminal block, 2-pin
V.24 interface1 x RJ11 socket
USB interface1 x USB to connect the AutoConfiguration Adapter ACA22-USB
SD-card slot1 x SD card slot to connect the auto configuration adapter ACA31

Network size - length of cable

Twisted pair (TP)0 m ... 100 m
Multimode fiber (MM) 50/125 µmsee SFP LWL-Modul M-SFP-SX/LC and M-SFP-LX/LC
Multimode fiber (MM) 62.5/125 µmsee SFP LWL-Modul M-SFP-SX/LC and M-SFP-LX/LC
Single mode fiber (SM) 9/125 µmsee SFP LWL-Modul M-SFP-LX/LC
Single mode fiber (LH) 9/125 µm (long haul transceiver)see SFP LWL-Modul M-SFP-LH/LC and M-SFP-LH+/LC

Network size - cascadibility

Line - / star topologyany

Power requirements

Operating voltage2x 60/110/125/220/250 VDC (48V - 320 VDC) and 110/120/220/230 VAC (88 - 265 VAC)
Power consumption14 W


EncryptionEnhanced encryption ( >56 Bit, up to 256Bit DES) Management access


RoutingVLAN and port based routing, static routing, multinetting, IP masquerading, 1-to-1 NAT,port forwarding, Static and Dynamic ARP enteries, OSPFv2, Static Route Tracking
Redundancy functionsVRRP (Virtual Router Redundancy Protocol), VRRP Tracking
FilterQOS 8 classes, port prioritisation IEEE 802.1D/p, VLAN IEEE 802.1Q, HTTPS, SSH, SNMP V1/V3, LLDP
Time synchronisationNTP/SNTP
Flow controlFlow control (IEEE802.3X)
MiscellaneousSupport for WAN Interface SHDSL, Support for FE/GE Twisted Pair SFP, Wire speed port scan prevention, 8 QoS classes, port prioritization IEEE 802.1D/Q, VLAN IEEE 802.1Q

Ambient conditions

Operating temperature0 ºC ... 60 ºC
Storage/transport temperature-40 ºC ... 85 ºC
Relative humidity (non-condensing)10 % ... 95 %

Mechanical construction

Dimensions (W x H x D)90 mm x 164 mm x 120 mm
MountingDIN Rail
Weight1200 g
Protection classIP20

Mechanical stability

IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)8 kV contact discharge, 15 kV air discharge
EN 61000-4-3 electromagnetic field35 V/m (80-2700 MHz); 1 kHz, 80% AM
EN 61000-4-4 fast transients (burst)4 kV power line, 4 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line, IEEE1613: power line 5 kV (line/earth)
EN 61000-4-6 conducted immunity10 V (150 kHz-80 MHz)

EMC emitted immunity

FCC CFR47 Part 15FCC 47 CFR Part 15 Class A
EN 55022EN 55022 Class A


Basis StandardCE; C-Tick; EN 61131; EN 60950
SubstationIEC 61850-3, IEEE 1613
