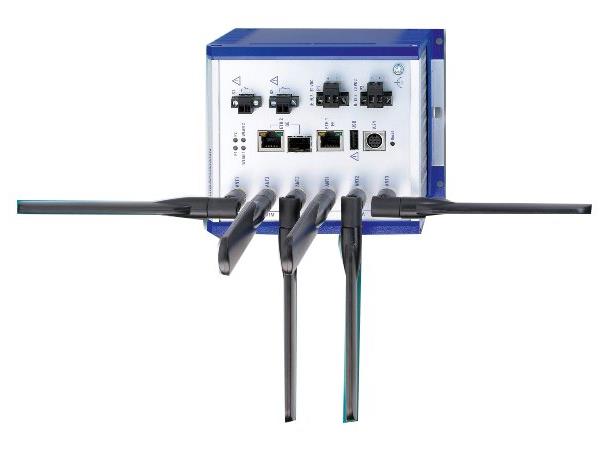

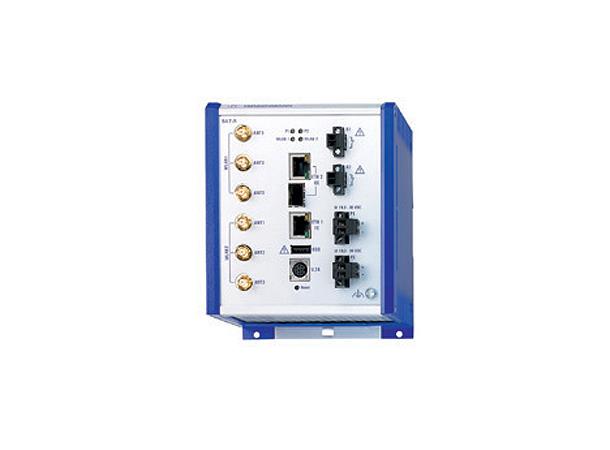

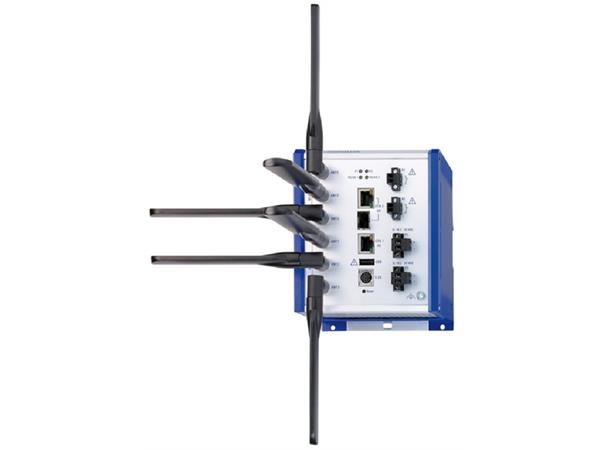

Hirschmann OpenBAT-R trådløs AP/klient


Varenr: BAT-REUWW9ACC99A-01
Product description
DescriptionThe ruggedized WLAN devices BAT-R and BAT-F supply proven industrial-grade IEEE 802.11n WLAN technology.
Port type and quantityEthernet 1: ComboPort 10/100/1000 via RJ45 or SFP
Radio protocolIEEE 802.11a/b/g/n WLAN as per IEEE 802.11n
Country certificationEurope (Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lituania, Luxembourg, Malta, Netherland, Poland, Portugal, Romania, Sweden, Slowakia, Slowenia, Spain), Great Britain, Iceland, Liechtenstein, Norway, Switzerland, Turkey
More Interfaces
V.24 interface8-pin "A"-coded M12 socket, Serial console, Automatic Point-2-Point configuration between two devices (Coach-to-Coach coupling). AT modem.
USB interfaceCan be disabled in software. USB Type A socket, compatible with ACA21-USB EEC and ACA22-USB EEC
Power SupplyPower 1: 2-pin terminal block , Power 2: 2-pin terminal block
Signaling contactSignal 1: 2-pin terminal block , Signal 2: 2-pin terminal block
Local Management and Device ReplacementAuto Configuration Adapter (ACA) for Plug&Play device replacement, HiDiscovery v1
Radio technology
Antenna connector3× RP-SMA Female for each WLAN interface, requires antennas with RP-SMA Male connectors
Frequency bandFreely configurable between 2.4 GHz and 5 GHz independently on each WLAN interface: 2400 -2483.5 MHz (ISM) and 5170 -5850 MHz (additional regulatory restrictions apply depending on the country of operation)
Modulation20M0F7D (DSSS/OFDM) @ 2.4 GHz, 20M0G7D (OFDM) @ 5 GHz, MCS 0 - MCS23
Receiver sensitivity-94 dBm
Additional radio featuresIntegrated ESD protection, Clear Space®. WLAN 1: 3x3 MIMO (configurable), up to 3 streams (configurable) . WLAN 2: 3x3 MIMO (configurable), up to 3 streams (configurable)
EncryptionOpen, WEP, 802.11i - WPA/WPA2 - Personal (PSK), 802.11i - WPA/WPA2 - Enterprise (802.1X: TLS, TTLS/PAP, TTLS/CHAP, TTLS/MSCHAP, TTLS/MSCHAPV2, TTLS/MD5, PEAP/MSCHAPV2), WPA3 Personal and Enterprise (AES-CCMP-128, AES-CCMP-256, AES-GCMP-128, AES-GCMP-256)
Power requirements
Operating VoltagePower 1: 24 .. 48 VDC , Power 2: 24 .. 48 VDC
Power consumptionmax. 12.95W , second WLAN module adds max. 4.55W to a total of 17.5W
Software featuresHigh performance operating system HiLCOS. Supports all WLAN functions, routing, firewall, VLAN, remote access, and redundancy. IPv4 and IPv6. Software PRP (IEC 62439-3) for Dual-WLAN variants.
ManagementWeb Interface (HTTPs), IPv4, IPv6, SNMP v1/v2/v3
DiagnosticsIPerf Server and Client, System Log, Syslog, Ping, detailed trace functionality, (W)LANMonitor, SNMP
Management SoftwareWLAN Controller, Industrial HiVision, LANConfig
Ambient conditions
MTBF (Telecordia SR-332 Issue 3) @ 25°C51 Years
Operating temperature0 -+60
NoteTemperature of the surrounding air.
Storage/transport temperature-40-+85 °C
Relative humidity (non-condensing)10-95 %
Mechanical construction
Dimensions (WxHxD)151x145x121 mm
Weight1500 g
Protection classIP20
Basis StandardCE, RED, EAC
Safety of information technology equipmentIEC/EN 60950-1 IEC 62368-1:2018; EN IEC 62368-1:2020+A11:2020
Railway normEN50121-4, EN50121-3-2
RadioEN 300 328 (2.4 GHz), EN 301 893 (5 GHz), EN 302 502 (5.8 GHz)
WLAN Access Point
Access Point FunctionalityYes (Free selection between Access Point, Access Client and Point-to-Point functionality for each module separately in software). Operates as Managed Access Point in combination with a controller (WLC).
WLAN Client
Client / STA FunctionalityYes
Scope of delivery and accessories
Scope of deliveryDevice, safety instructions , terminal blocks for power supplies and signal contacts , EU CE declaration of conformity, UKCA , V.24 Terminal cable (M12 to DB9), 3dBi antennas, 50? terminating resistors
Further Instructions
Product Documentationhttps://www.doc.hirschmann.com/index.html
