BAT-ANT-N-18A-V-IP65 5GHz

5GHz 18 dBi, 18 dgr. beam

Varenr: 943 981-006
12768

Product description

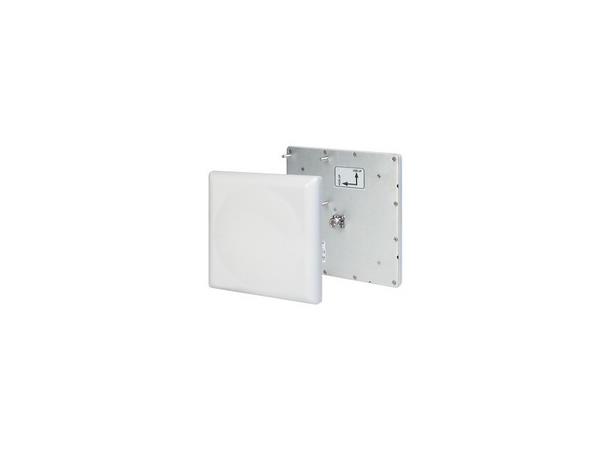

DescriptionDirectional antenna for 5 GHz band.
TypeBAT-ANT-N-18A-V-IP65
Order No.943 981-006
Cable length1 m
Cable specificationN-plug to N-plug

Radio technology

Frequency band5150 - 5850 MHz
Polarisationlinear, vertical
Elevation, Azimuth18º / 18º
VSWR1.5
Gain18 dBi
Antenna connectorN female

Ambient conditions

Operating temperature-45 ºC to +70 ºC
Storage/transport temperature-45 ºC to +70 ºC
Wind load104 N at 220 km/h

Mechanical construction

Dimensions (W x H x D)190 x 190 x 30.5 mm
Mountingwall, mast
Protection classIP65
MaterialASA
Weight0.7 kg

Scope of delivery and accessories

Scope of deliveryantenna, 1 m cable, pigtail, mounting material

Produktinformasjon

Gruppe 1 Nettverk Industri
Gruppe 2 Rail Trådløst WLAN
Gruppe 3 Tilbehør
Produsent Hirschmann
