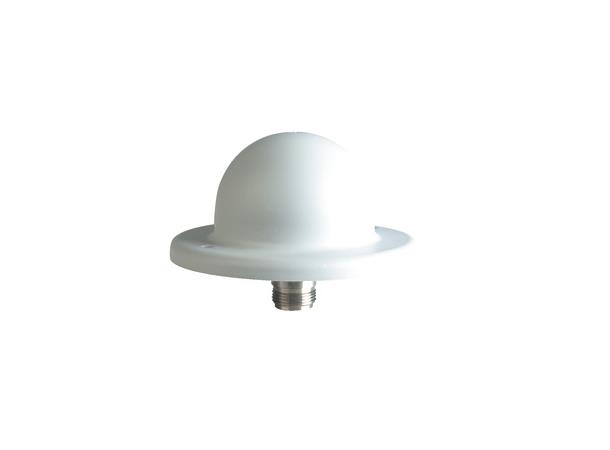

Hirschmann BAT-ANT-N-6ABG-IP65

WLAN antenna 6 dB, 360 gr. beam

Varenr: 943 981-004
Hirschmann BAT-ANT-N-6ABG-IP65 WLAN antenna 6 dB, 360 gr. beam

Product description

Description:Hemispherical antenna for 2.4 and 5 GHz band
Part Number:943981004
Cable specification:N-plug to N-plug
Cable Length:1 m

Radio technology

Antenna connector:N female
Elevation, Azimuth:vertical hemispherical, horizontal 360º
Frequency band:2400 MHz - 6000 MHz
Gain:2.4 GHz: 6.0 dBi; 5 GHz: 8.0 dBi with 1sqm ground plate
Polarisation:linear, vertical
Range:refer to antenna distance calculator

Ambient conditions

Operating temperature:-40-+80 °C
Storage/transport temperature:-40-+80 °C
Wind load:10 N at 160 km/h

Mechanical construction

Dimensions (WxHxD):Ø 86 mm x 43 mm
Weight:0.3 kg
Mounting:Ceiling, cabinet
Protection class:IP65, with sealing ring

Scope of delivery and accessories

Scope of delivery:antenna, 1 m cable, pigtail, sealing ring

Further Instructions

Product Documentation:https://www.doc.hirschmann.com
Update and Revision:Revision Number: 0.56 Revision Date: 01-08-2021
