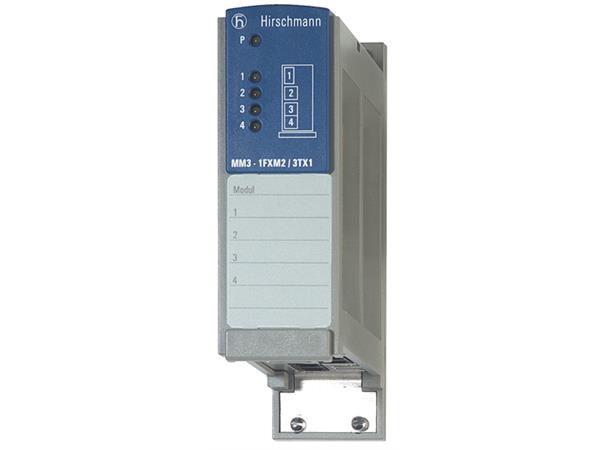

Media modul for switch-unit
- Standards: IEEE 802.3 100BASE-FX
- 1x 100BASE-FX ports with multimode SC connections
- F/O connection for G50/125 and G62.5/125 µm fibers
- link budget: 8dB for G50/125, 11dB for G62.5/125 µm fibers, 1300nm
- Standards: IEEE 802.3 10BASE-T and 100BASE-TX
- for the industrial use of shielded twisted-pair cables
- 3x 10/100BASE-T(X) ports with shielded RJ45 connections
- ports support autonegotiation, auto MDI/MDI-X and autopolarity
- TP line length: 100 m with 100 ohms
- protection class IP 20
- approvals:CE, cUL508, cUL1950, cUL1604 Class 1 Div 2, FCC, Germanischer Lloyd
- dimensions: (W x H x D) 38 x 134 x 77 mm
- weight: 170 g
