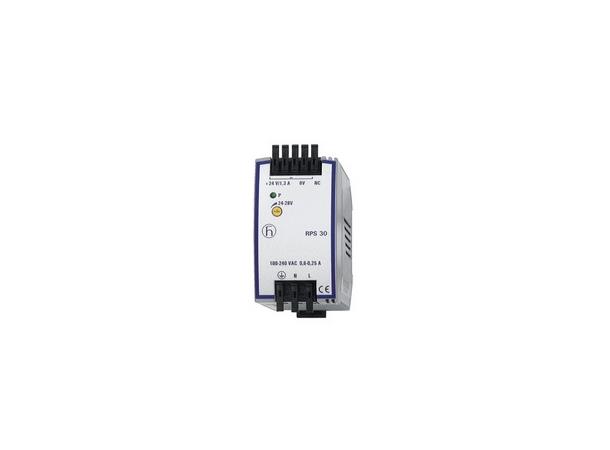

Hirschmann Power Supply RPS 30 230 VAC prim., 24 VDC sek., 1.3A, 30W

Hirschmann Power Supply RPS 30

230 VAC prim., 24 VDC sek., 1.3A, 30W

Varenr: 943 662-003

Product description

Description24 V DC DIN rail power supply unit
TypeRPS 30
Order No.943 662-003

More Interfaces

Voltage input1 terminal block, 3-pin
Voltage output1 terminal block, 5-pin

Power requirements

Operating voltage230 V

Input data

Input voltage100 to 240 V AC; 47 to 63 Hz or 85 to 375 V DC

Current consumption

Current consumptionmax. 0,35 A at 296 V AC
Activation current< 36 A at 240 V AC and cold start

Output data

Output voltage24 V DC (-0,5%, +0,5%)

Output current

Output current1,3 A at 100 - 240 V AC


DiagnosticsLED (power, DC ON)


Redundancy functionsPower supply units can be connected in parallel

Ambient conditions

Operating temperature-10 ºC to +70 ºC (from 60 ºC derating)
Storage/transport temperature-25 ºC to +85 ºC
Relative humidity (non-condensing)max. 95% without condensation
MTBF74.2 years; Siemensnorm SN 29500 : 40 ºC

Mechanical construction

Dimensions (W x H x D)45 mm x 75 mm x 91 mm
MountingDIN Rail 35 mm
Weight230 g
Protection classIP 20

EMC interference immunity

EN 50082-1EN 61000-6-2 (includes EN 55024)
EN 50082-2EN 61000-6-2 (includes EN 55024)

EMC emitted immunity

EN 50081-1EN 50081-1
EN 50081-2EN 50081-2


Safety of industrial control equipmentcUL 508
Safety of information technology equipmentcUL 60950-1
Hazardous locationsISA 12.12.01 Class 1 Div. 2 (pending)
ShipbuildingGermanischer Lloyd

Scope of delivery and accessories

Scope of delivery

Rail power supply,
Description and operating manual
