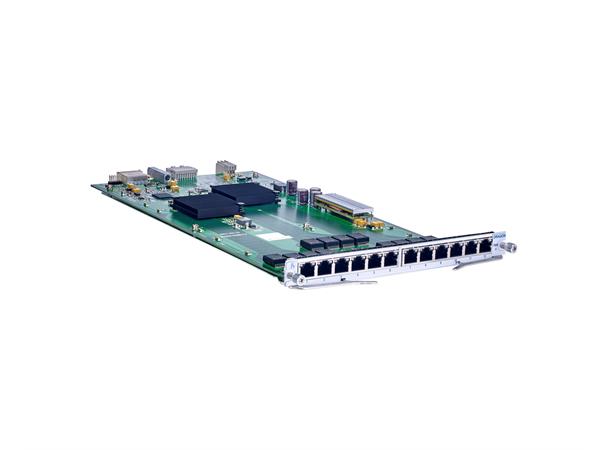

DRAGON D4K-12TP-RJ45 media module

12 x FE/GE RJ45, field-replaceable

Varenr: 942 155-001
21709

Product description

TypeD4K-12TP-RJ45
Order No.942 155-001
DescriptionDRAGON MACH4x00 media module with 12 x FE/GE TX ports; field-replaceable
Port type and quantity12 x 10/100/1000 Mbit/s RJ45 sockets for TP cable, auto-crossing, auto-negotiation, auto-polarity

Power requirements

Operating voltagepower supply via the backplane of the switch
Power consumption15 W

Mechanical construction

Dimensions (W x H x D)220 mm x 334 mm x 23 mm
MountingPlug-in device

Ambient conditions

Operating temperature0 ºC ... 60 ºC
Storage/transport temperature-40 ºC ... 70 ºC
Relative humidity (non-condensing)10 % ... 95 %

Approvals

Safety of industrial control equipmentcUL 61010-1/-2-201 (pending)

Scope of delivery and accessories

Scope of deliverydevice

Produktinformasjon

Gruppe 1 Nettverk Industri
Gruppe 2 MACH 4000 Dragon
Gruppe 3 Media moduler
Produsent Hirschmann
