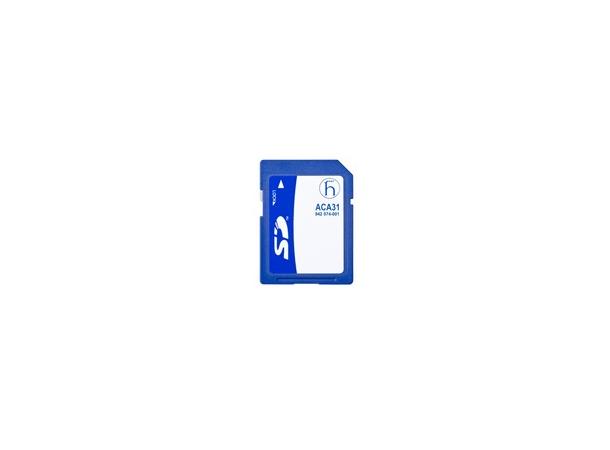

Auto configuration adapter, SD card

512mb, ACA31

Varenr: 942 074-001
Alt. varenr: ACA31
Auto configuration adapter, SD card 512mb, ACA31

Product description

DescriptionAuto-configuration adapter, SD card with 512MB, extended temperature range, saves two different versions of configuration data and operating software from the connected switch. It enables managed switched to be easily comissioned and quickly replaced.
Order No.942 074-001

Power requirements

Operating voltagevia the SD switch interface


Diagnosticswriting to ACA, reading from ACA, writing/reading not OK (display using LEDs on the switch)
Configurationvia SD switch interface

Ambient conditions

Operating temperature-40 ºC ... 85 ºC
Storage/transport temperature-40 ºC ... 85 ºC
Relative humidity (non-condensing)10 % ... 95 %

Mechanical construction

Dimensions (W x H x D)32 mm x 24 mm x 2,1 mm
Mountingplug-in module
Weight5 g
Protection classIP20

Mechanical stability

IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration1 g, 10 Hz - 150 Hz, 30 cycles

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field10 V/m

EMC emitted immunity

EN 55022EN 55022

Scope of delivery and accessories

Scope of delivery

device, operating manual
