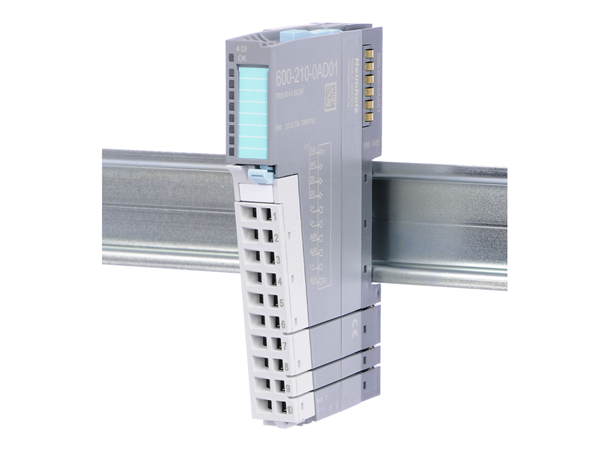

AI 4x I, 0/4-20 mA, ±20 mA, 12 Bit

Parameters for the module

• Diagnostic alarm: On | Off
• Overflow / underflow diagnosis: On | Off
• Representation values: SIMATIC* S7 | SIMATIC* S5

Parameters for each channel

• Wire break detection (only for 4 ... 20 mA): On | Off
• Interference frequency suppression: None | 10 Hz | 50 Hz | 60 Hz | 400 Hz
• Measuring ranges: Deactivated | 0 ... 20 mA | 4 ... 20 mA | ±20 mA
• Limit value alarms enabled: On | Off
• Upper/lower limit: 16 bit analog value (±27648)
