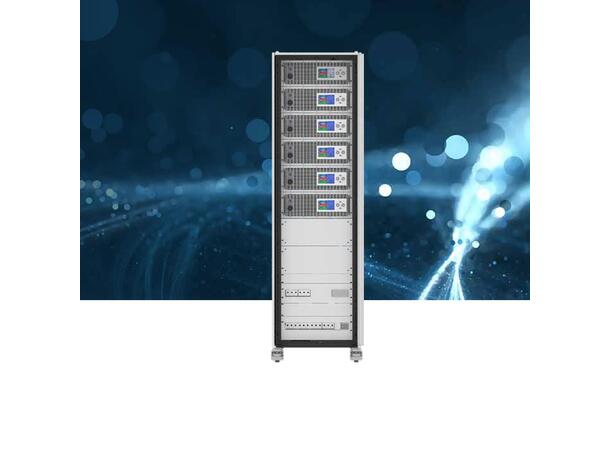

EA-BPTS 20920-720 Battery Pack Test System

EA-BPTS 20920-720 Battery Pack Test

System

Varenr: EA-BPTS 20920-720
0,00

EA-BPTS 20920-720 Battery Pack Test System


Spør oss om priser

Features
  • Battery pack tester, a battery cycler for charge and discharge
  • High power battery pack tester within a 421J rack
  • System power of 180 kW
  • Voltage range of 0 920 V
  • Current range of 0 — 720 A
  • Full energy regeneration in discharge operation
Very high efficiency of up to 96.5%
  • Up to 1 ms command and measurement speed
  • Regulation modes CV, CC, CP With fast crossover
  • Integrated battery test mode
  • DC contactors integrated
  • Active pre-charge
  • Integrated Reverse Polarity Detection
  • Zero Current Turn-off to protect DC contactors
  • Temperature monitoring
  • AC input 3 phase, 400V, 50 Hz
  • Rack equipped With a 2-channel fast stop system
  • Command languages and drivers: SCPI and ModBus, LabView, IVI


Built-in interfaces
  • USB
  • Ethernet (1 Gbit/s)
  • EtherCAT
  • CAN FD
  • USB Host on front panel
  • Master-Auxiliary Bus
  • Share-Bus
  • Digital input, relay contact and temperature sensors

Software
  • EA Power Control

Options
  • Water cooling in stainless steel
  • Grid monitor
  • Insulation monitor
