EA-PUB 10000 6U DC Power Supply

Programmable, bidirectional

Varenr: EA-PUB 10000 6U
Output voltage
Output power
Fra 532 400,00

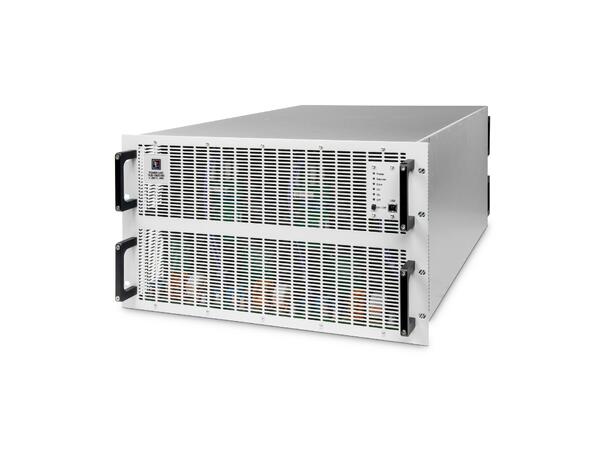

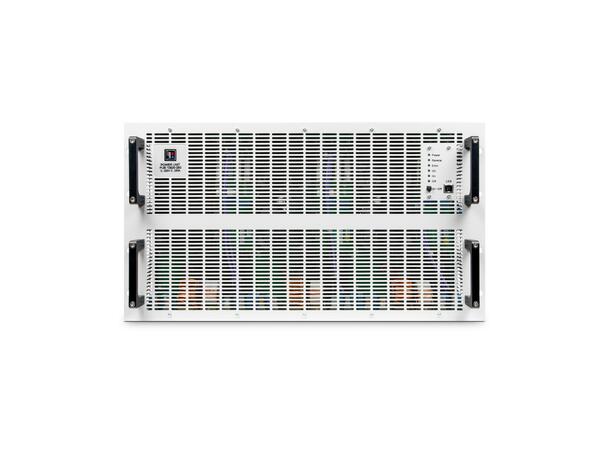

EA-PUB 10000 6U 60 KW Programmable bidirectional DC power supply


Features
  • Wide range input: 380 V - 480 V, +10%, 3ph AC
  • Active Power Factor Correction, typical 0.99
  • Bidirectional power supply, 2-quadrants in source and sink
  • ln load operation, regenerative With energy recovery into the grid
  • Very high efficiency of up to 96%
  • High performance With up to 60 kW per unit
  • Voltages from 0-360 V up to 0 - 2000 V
  • Currents from 0 - 80 A up to 0 - 480 A
  • Flexible power regulated DC output/input stage (auto-ranging)
  • Regulation modes CV, CC, CP, CR With fast crossover
  • Digital regulation, high resolution With 16 Bit ADCs and DACs, selection of voltage controller speed
  • Galvanically isolated Share-Bus for parallel operation of all power classes in the 10000 series
  • Master-slave bus for parallel operation of up to 64 units of all power classes in the 10000 series
  • Command languages and drivers: SCPI and ModBus, LabVIEW, IVI

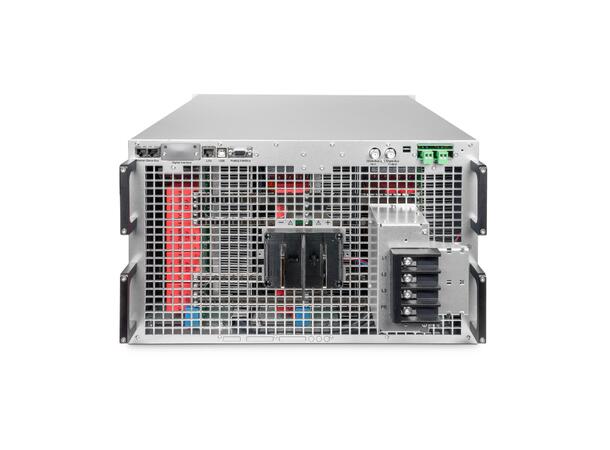

Built-in interfaces
  • USB
  • Ethernet
  • Analog
  • Master-Slave-Bus
  • Share-Bus
  • USB (front panel)

Optional interfaces
  • CAN
  • CANopen
RS232
  • Profibus
  • EtherCAT
  • Profinet, With one or two ports
  • Modbus, With one or two ports
  • Ethernet, With one or two ports

Software
  • EA-Power Control
  • EA-Battery Simulator

Options
  • Water Cooling in stainless steel
  • Function generator
