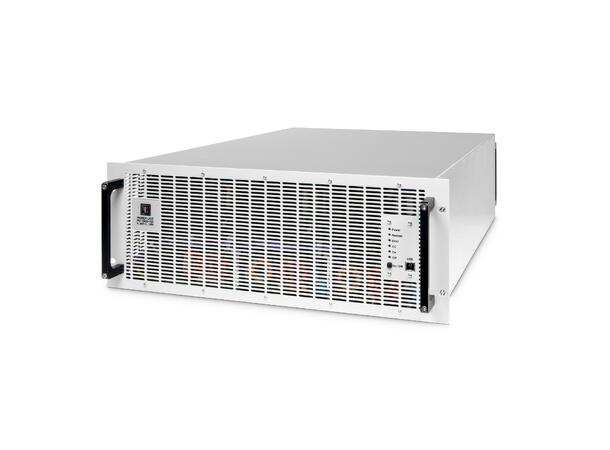

EA-PU 10000 4U 30 kW
Programmable DC power supply
Features
- Wide range input: 208 V - 480 V, 3ph AC
- Active Power Factor Correction, typical 0.99
- Very high efficiency of up to 96%
- High performance With up to 30 kW per unit
- Voltages from 0-60 V up to 0 - 2000 V
- Currents from 0-40 A up to 0- 1000 A
- Flexible power regulated DC output stages (autoranging)
- Regulation modes CV, CC, CP, CR With fast crossover
- Digital regulation, high resolution With 16 bit ADCs and DACs, selection of voltage control speed: Normal, Fast, Slow
- Galvanically isolated Share-Bus for parallel operation of all power classes in the 10000 series
- Master-slave bus for parallel operation of up to 64 units of same type in all power classes of the 10000 series
- Command languages and drivers: SCPI and ModBus, LabVIEW, IVI
Built-in interfaces - USB
- Ethernet
- Analog
- Master-Slave bus
- Share Bus
- USB (front panel)
Optional interfaces
- CAN
- CANopen
- RS232
- Profibus
- EtherCAT
- Profinet, with one or two ports
- Modbus, with one or two ports
- Ethernet, with one or two ports
Software
Options
- Water Cooling in stainless steel
- Function generator
