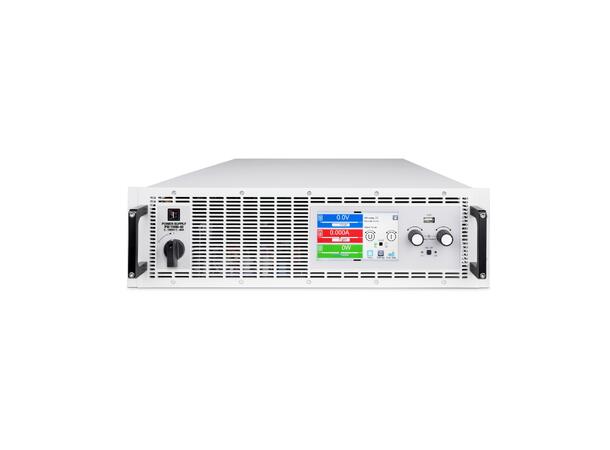

EA-PSI 10000 3U 5 KW - 10 KW - 15 KW
Programmable DC power supplies
Features
Wide range input: 208 V - 480 V, +10%, 3ph AC
Active Power Factor Correction, typical 0.99
Very high efficiency of up to 96 %
High performance of up to 15 kW per unit
Voltages from 0 - 60 V up to 0 - 2000 V
Currents from 0 - 20 A up to 0- 510A
Flexible power regulated DC output stage (autoranging)
Regulation modes CV, CC, CP, CR With fast crossover
Digital regulation, high resolution with 16bit ADCs and DACs, selection of control speed: Normal, Fast, Slow
Color 5" TFT display With touch control and intuitive user interface
Galvanically isolated Share-Bus for parallel operation of all power classes in the 10000 series
Master-Slave bus for parallel operation of up to 64 units of all power classes in the 10000 series
Integrated function generator with predefined curves
Predifined automotive test procedures for LV 123, LV 124 and LV 148
Command languages and drivers: SCPI and ModBus, LabVlEW, IVI
Built-in interfaces
- USB
- Ethernet
- Analog
- USB Host
- Master-Slave bus
- Share-Bus
Optional interfaces
- CAN
- CANopen
- RS232
- Profibus
- EtherCAT
- Profinet, With one or two ports
- Modbus, With one or two ports
- Ethernet, With one or two ports
