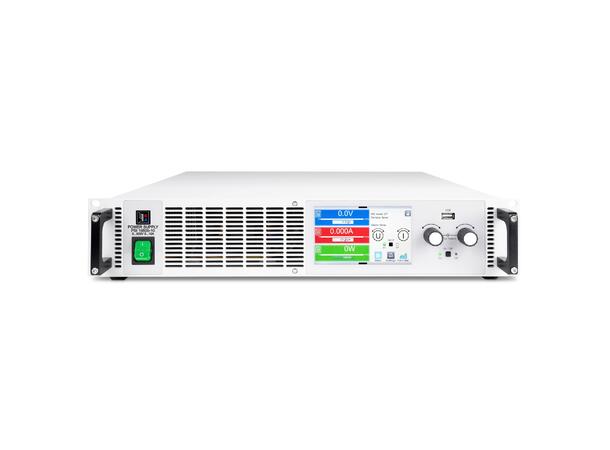

EA-PSI 10000 2U DC Power Supply Programmable, 1,5 kW /3,0 kW

EA-PSI 10000 2U DC Power Supply

Programmable, 1,5 kW /3,0 kW

Varenr: EA-PSI 10000 2U
Output voltage
Output power
Fra 47 630,00

EA-PSI 10000 2U 1.5 KW / 3.0 KW

Programmable DC-Power Supply


Features
  • Wide range input, 110 V - 240 V % Iph AC
  • Active PowerFactorCorrection, typical 0.99
  • Very high efficiency up to over 95 %
  • Voltage from 0 - 60 V up to 0-1500 V
  • Currents from 0- 6A up to 0- 120 A
  • Flexible power regulated DC output stages (autoranging)
  • Regulation mode CV, CC, CP, CR With fast crossover
  • Digital regulation, high resolution With 16bit ADCs and DACs, selection of control speed: Normal, Fast, Slow
  • Color 5" TFT display With touch control and intuitive user interface
  • Galvanically isolated Share-Bus for parallel operation of all power classes in the 10000 series
  • Master-Slave bus for parallel operation of up to 64 units of all power classes in the 10000 series
  • Integrated function generator With predefined curves
  • Predefined automotive test procedures for LVI 23, LV124 and LV148
  • Command languages and drivers: SCPI and ModBus, LabVIEW, IVI
Build-in Interfaces
  • USB
  • Ethernet
  • Analog
  • USB Host
  • Master-Slave Bus
  • Share-Bus
Optional Interfaces
  • CANopen
  • RS232
  • Profibus
  • EtherCAT
  • Profinet, With one or two ports
  • Modbus, With one or two ports
  • Ethernet, With one or two ports
Software
  • EA-Power Control
