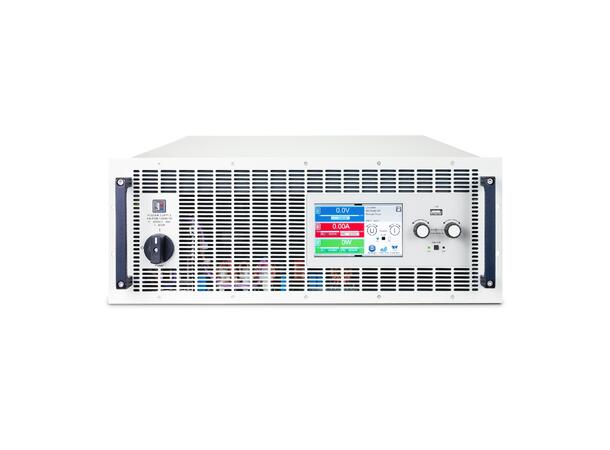

EA-PSB 10000 4U Bidirectional DC Power Programmable

EA-PSB 10000 4U Bidirectional DC Power

Programmable

Varenr: EA-PSB 10000 4U
Output voltage
Output power
Fra 326 700,00

EA-PSB 10000 4U 30 KW

Programmable bidirectional DC power supply


Features
  • Wide range input: 208 V - 480 V, 3ph AC
  • Active Power Factor Correction, typical 0.99
  • Bidirectional power supply, 2-quadrants in source and sink
  • ln load operation, regenerative With energy recovery into the grid
  • Very high efficiency of up to 96%
  • High performance With up to 30 kW per unit
  • Voltages from 0 - 10 V up to 0 - 2000 V
  • Currents from 0 - 40 A up to 0-1000 A
  • Flexible power regulated DC output stages (autoranging)
  • Regulation modes CV, CC, CP, CR With fast crossover
  • Digital regulation, high resolution With 16bit ADCs and DACs, selection of voltage regulation speed: Normal, Fast, Slow
  • Color 5" TFT display With touch control and intuitive user interface
  • Galvanically isolated Share bus for parallel operation of all power classes in the 10000 series
  • Master-Slave bus for parallel operation of up to 64 units of all power classes in the 10000 series
  • Integrated function generator With predefined curves
  • Automotive test procedures for LVI 23, LV 124 and LV148
  • Battery test mode, battery and fuel cell simulation
  • Photovoltaics test mode (EN 50530), MPPT
  • Command languages and drivers: SCPI and ModBus, LabVIEW, IVI

Built-in interfaces
  • USB
  • Ethernet
  • Analog
  • USB Host
  • Master-Slave Bus
  • Share-Bus

Optional interfaces
  • CANopen
  • RS232
  • Profibus
  • EtherCAT
  • Profinet, With one or two ports
  • Modbus, With one or two ports
  • Ethernet, With one or two ports

Software
  • EA-Power Control
  • EA-Battery Simulator

Options
  • Water Cooling in stainless steel
