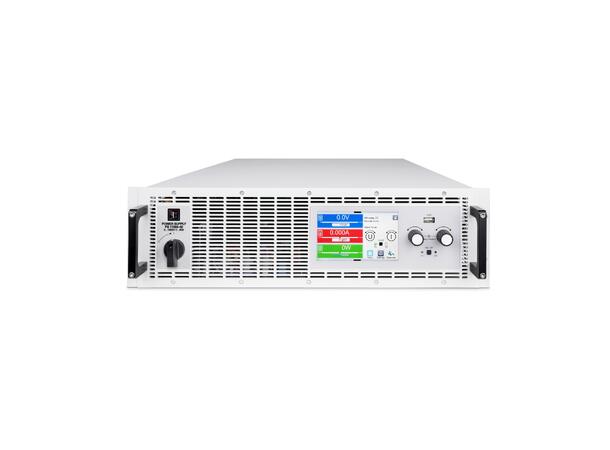

EA-PSB 10000 3U, DC Power Supply Bidirectional, programmable,5-10-15 kW

EA-PSB 10000 3U, DC Power Supply

Bidirectional, programmable,5-10-15 kW

Varenr: EA-PSB 10000 3U
Output voltage
Output power
Fra 135 300,00

EA-PSB 10000 3U 5 KW / 10 KW / 15 KW

Programmable bidirectional DC power supplies


Features
  • Wide range input: 208 V - 480 V, +10%, 3ph AC
  • Active Power Factor Correction, typical 0.99
  • Bidirectional power supply, 2-quadrants in source and sink
  • In load operation, regenerative With energy recovery into the grid
  • Very high efficiency of up to 96%
  • High performance of up to 15 kW per unit
  • Voltages from 0 - 10 V up to 0 - 2000 V
  • Currents from 0 - 20 A up to O - 510 A
  • Flexible power regulated DC input/output stage (auto-ranging)
  • Regulation modes CV, CC, CP, CR With fast crossover
  • Digital regulation, high resolution With 16bit ADCs and DACs, selection of control speed
  • Color 5" TFT display With touch control and intuitive user interface
  • Galvanically isolated Share-Bus for parallel operation of all power classes in the 10000 series
  • Master-slave bus for parallel operation of up to 64 units of all power classes in the 10000 series
  • Integrated function generator With predefined curves
  • Automotive test procedures for LV 123, LV124 and LV148
  • Battery test mode, battery and fuel cell simulation
  • Photovoltaics test mode (EN 50530), MPPT
  • Command languages and drivers: SCPI and ModBus, LabVlEW, IVI

Built-in interfaces
  • USB
  • Ethernet
  • Analog
USB Host
  • Master-Slave bus
  • Share-Bus

Optional interfaces
  • CAN
  • CANopen
  • RS232
  • Profibus
  • EtherCAT
  • Profinet, With one or two ports
  • Modbus, With one or two ports
  • Ethernet, With one or two ports

Software
  • EA Power Control
  • EA Battery Simulator
Options
  • Models for 208 VAC supply
