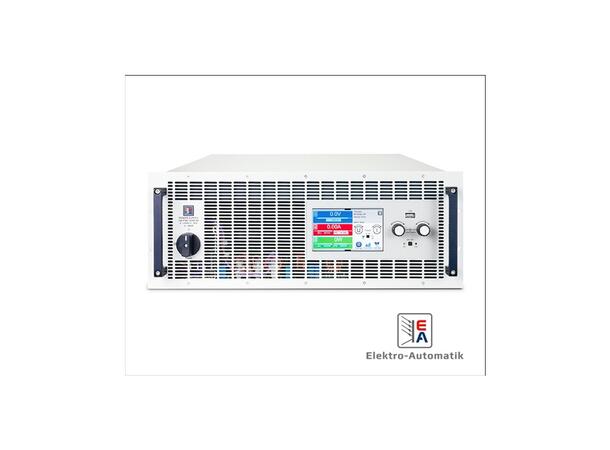

EA-ELR 10000 4U Electronic DC loads Programmable with energy recovery

EA-ELR 10000 4U Electronic DC loads

Programmable with energy recovery

Varenr: EA-ELR 10000 4U
Output voltage
Output power

EA-ELR 10000 4U 30 KW

Programmable electronic DC loads wilth energy recovery


Features
  • Wide range AC input: 208 V - 480 V, ±10%, 3ph AC
  • Active Power Factor Correction, typical 0.99
  • Regenerative, With energy recovery into the grid
  • Very high efficiency of up to 96%
  • High performance With 30 kW per unit
  • Voltages from 0 - 80 V up to 0 - 2000 V
  • Currents from 0 - 40 A up to 0 - 1000 A
  • Flexible, power regulated DC input stages (autoranging)
  • Regulation modes CV, CC, CP, CR With fast crossover LabVlEW, IVI
  • Digital regulation, high resolution With 16bit ADCs and DACs, selection of voltage regulation speed: Normal, Fast, Slow
  • Color 5" TFT display With touch control and intuitive user interface
  • Galvanically isolated Share bus for parallel operation of all power classes in the 10000 series
  • Master-Slave bus for parallel operation of up to 64 units of all power classes in the 10000 series
  • Integrated function generator With predefined curves
  • Battery test mode
  • Solar inverter test mode (MPPT)
  • Command languages and drivers: SCPI and ModBus,

Built-in interfaces
  • USB
  • Ethernet
  • Analog
  • USB-Host
  • Master-Slave-Bus
  • Share bus

Optional interfaces
  • CAN
  • CANopen
  • RS232
  • Profibus
  • EtherCAT
  • Profinet, With one or two ports
  • Modbus, With one or two ports
  • Ethernet, With one or two ports

Software
  • EA-Power Control
  • Options
  • Water Cooling in stainless steel
