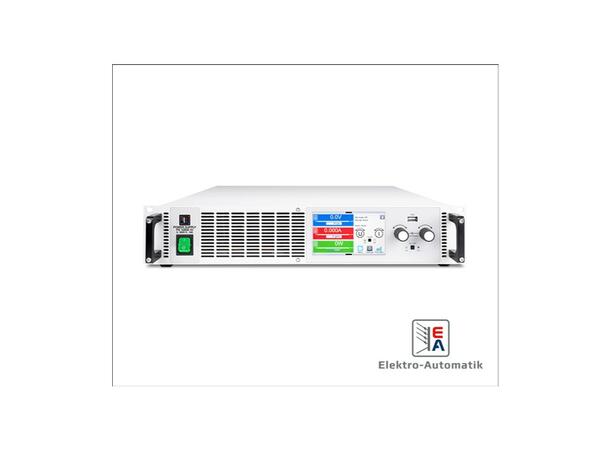

EA-ELR 10000 2U Electronic loads Programmable with Energy recovery

EA-ELR 10000 2U Electronic loads

Programmable with Energy recovery

Varenr: EA-ELR 10000 2U
Output voltage
Output power

EA-ELR 10000 2U 1.5 KW / 3.0 KW

Programmable Electronic DC-Loads With Energy Recovery


Features
  • Wide range input, 110 V - 240 V ±10 % 1ph AC
  • Active Power-Factor-Correction, typical 0.99
  • Regenerative With energy recovery into the grid
  • Very high efficiency up to over 95 %
  • Voltage from 0 - 80 V up to 0- 1500 V
  • Currents from 0-6A up too 120 A
  • Flexible power regulated DC input stages (autoranging)
  • Regulation mode CV, CC, CP, CR With fast crossover
  • Digital regulation, high resolution With 16bit ADCs and DACs, selection of control speed: Normal, Fast, Slow
  • Color 5" TFT display With touch control and intuitive user interface
  • Galvanically isolated Share-Bus for parallel operation of all power classes in the 10000 series
  • Master-Slave bus for parallel operation of up to 64 units of all power classes in the 10000 series
  • Integrated function generator With predefined curves
  • Integrated battery test mode
  • Photovoltaics test mode, MPPT
  • Command languages and drivers: SCPI and ModBus, LabVlEW, IVI

Build-in Interfaces
  • USB
  • Ethernet
  • Analog
  • USB Host
  • Master-Slave Bus
  • Share-Bus

Optional Interfaces
  • CAN
  • CANopen
  • RS232
  • Profibus
  • EtherCAT
  • Profinet, With one or two ports
  • Modbus, With one or two ports
  • Ethernet, With one or two ports
Software
EA-Power Control
