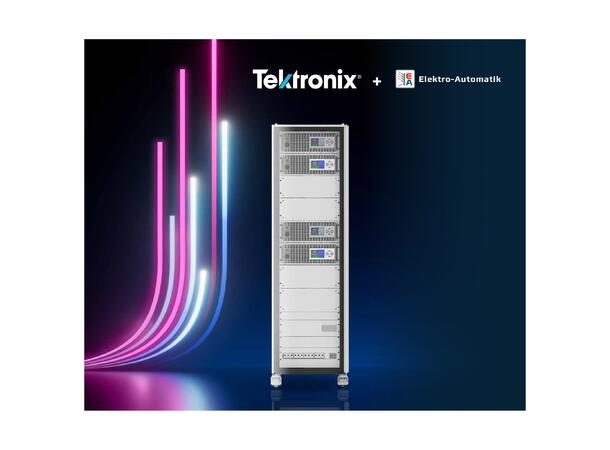

EA-BMTS 20200-840-2 Battery Module Test System
Spør oss om priser
Features
- Battery module tester, a battery cycler for charge and discharge 2 individual high power channels within a 42U rack
- Power of 60 kW per channel
- Voltage range of 0 — 200 V per channel
- Current range of 0 — 840 A per channel
- Full energy regeneration in discharge operation
- Very high efficiency of up to 95.3 %
- Up to 1 ms command and measurement speed
- Regulation modes CV, CC, CP With fast crossover
- Integrated battery test mode
- DC contactors integrated
- Active pre-charge
- Integrated Reverse Polarity Detection
- Zero Current Turn-off to protect DC contactors
- Temperature monitoring AC input 3 phase, 400V, 50 Hz
- Rack equipped With a 2-channel fast stop system
- Command languages and drivers: SCPI and ModBus, LabVIEW, IVI
Built-in interfaces
- USB
- Ethernet (1 Gbit/s)
- EtherCAT
- CAN FD
- USB Host on front panel
- Master-Auxiliary bus
- Share-Bus
- Digital input, relay contact and temperature sensor per channel
Software
Options
- Water cooling in stainless steel
- Grid monitor
- Insulation monitor
Link til Tektronix EA hjemmeside: https://www.tek.com/en/products/ea/ea-high-power-dc-racks
