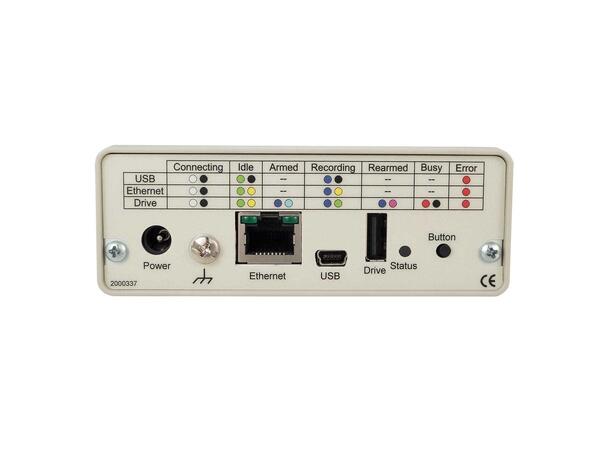

Dataq DI-4718B USB or Ethernet Data Acquisition (DAQ) System

Model DI-4718B-E
Measure Anything with this 8-channel USB & Ethernet Data Logger and Data Acquisition System for DI-8B Amplifiers. Expandable to 128 channels

PoE Option Currently Unavailable

• Includes a DI-4718B-E instrument, a 5-foot Ethernet cable, a 6-foot USB cable, a power supply and adapter, a 3.5mm stereo jack for remote control, a USB thumb drive with WinDaq software, an NIST-traceable calibration certificate (pdf included on thumb drive), a screwdriver for signal connections. DI-8B amplifiers sold separately.
• Measures temperature, pressure, flow, current, voltage, and more using isolated 8B amplifiers. At least one 8B module is required. View the DI-8B amplifier selection guide
• Low-Cost, Portable, USB & Ethernet Data Logger and Data Acquisition System
• Easy signal swapping connector
• Up to 160,000 Hz Sample Throughput Rate using WinDaq Acquisition software
• Up to 160,000 Hz Sample Throughput Rate in stand-alone mode using high speed microSD card
• Eight DI-8B signal-conditioned analog inputs
• 12 to 16-bit analog-to-digital resolution (Calculate Resolution)
• Adaptable low-pass filter per channel
• Corner frequency set as a function of sampling rate
• PC-connected or stand-alone operation (Unlock code required to record more than one channel to USB flash drive)
• Supports ChannelStretch™ multi-unit synchronization expansion (Unlock Code required):
  - Up to sixteen instruments
  - Up to 480 kHz throughput
  - Up to 128 analog channels and 112 digital ports
  - Syncs with itself and models DI-4108, DI-4208, and DI-4730 in any combination using the same communications interface
  - Synchronization not available in stand-alone mode
  - Unlock code required per device - see Accessories
• Two digital ports for remote controls
• Software support includes ready-to-run WinDaq software and documented protocol for software development in all operating systems (visit our GitHub repository for example programs)
• Markings: CE, UKCA
• Find out how long your data logger can record to removable flash memory with our Record Time Calculator
• 10% Education Discount

*WinDaq/Unlock required per device to use ChannelStretch™. See Accessories. Multi-unit synchronization is not available in stand-alone mode.

Description
DI-4718B-E USB & Ethernet Data Logger and Data Acquisition System for applications that require signal conditioning. Install up to eight DI-8B isolated signal conditioning modules on the printed circuit board using the removable front panel. Each DI-8B module protects, filters, amplifies, and isolates an input signal, providing an advanced signal conditioning solution for nearly any industrial measurement.

DI-4718B-E features 12- to 16-bit analog-to-digital resolution as a function of sample rate. Lower sampling rates deliver higher resolution readings. The maximum analog sampling throughput rate of the DI-4718B analog subsystem is 160 kHz, providing 12 bits of resolution. Resolution varies with respect to sample rate. Add up to 128 analog channels with ChannelStretch™ channel expansion, which is supported in all USB and Ethernet versions. Synchronize any USB DI-4718Bs, DI-4108s, DI-4208s, and/or DI-1120s to one PC or synchonize multiple DI-4718B Ethernet units. Acquire from as many as 128 analog and 112 digital channels at combined total throughput rates over 480 kHz.

Use a USB drive to record data in stand-alone mode. The DI-4718B can record to a USB thumb drive continuously using a circular buffer with pre-defined trigger conditions or a record-until-full approach supporting remote start/stop. A push button allows manual start/stop control over the recording process. With a flash memory card incorporating SLC technology, record up to 160,000 Hz Sample Throughput Rate in stand-alone mode using high speed microSD card. The included WinDaq data acquisition software makes configuring the DI-4718B for stand-alone operation quick and intuitive. Use WinDaq to set up channels and create a reference file. That reference file can then be copied to the USB drive and used for quick setup.
