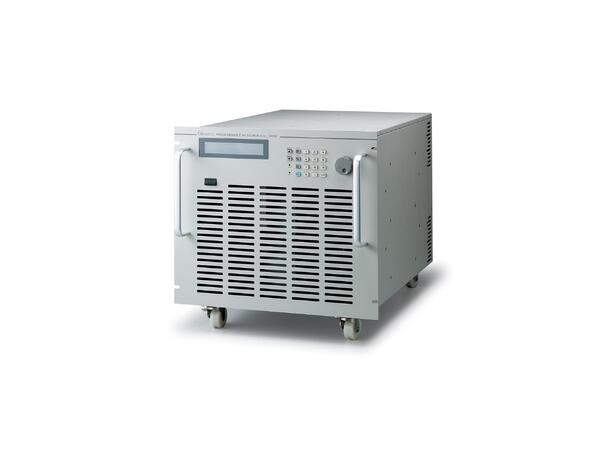

61702 Programmable AC Source 0~300V, 15~1.2KHz/3Ø 3KVA

61702 Programmable AC Source

0~300V, 15~1.2KHz/3Ø 3KVA

Varenr: 61702
Output voltage
Output power

Chroma Model 61700 Series 3-Phase AC Power Source


Key Features
  • Output Rating:
  • Power:
- 1.5KVA, 3ø (61701)
- 3KVA, 3ø (61702)
- 4.5KVA, 3ø (61703)
- 6KVA, 3ø (61704)
- 12KVA, 3ø (61705)
  • Voltage: 0-150V/o-300V
  • Frequency: 15—1.2kHz
  • Phase angle: 0-3600 Programmable
  • Built-in PFC, provides input power factor of over O. 98
  • AC+DC output mode
  • Comprehensive measurement capability, V, Irms, Ipk, linrush, P, PF, CF of current etc.
  • Programmable r.m.s. current limit
  • Turn on, turn Off Phase angle control
  • Full protection: OP, OC, OV and OT protection
  • Optional GPIB and RS-232 interface
  • Advanced PWM technology delivers high power density in a compact rack-mountable package
  • User-definable power-on status
  • Built-in output isolation relays
  • Easy use graphic user interface: SoftPanel (Option)
  • Optional function for transient voltage output, including LIST, PULSE, STEP and INTERHARMONICS mode
