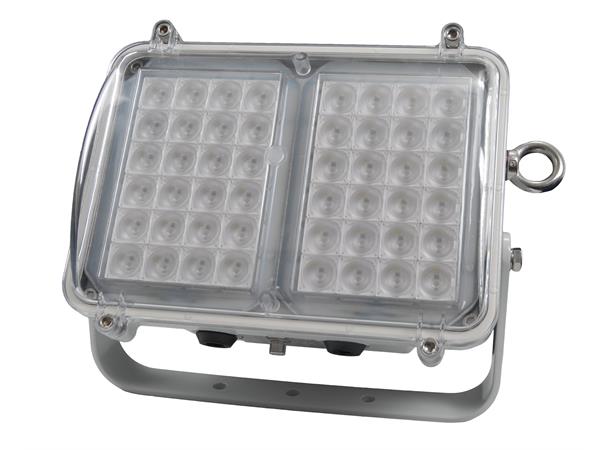

Hadar Floodlight 96x 1W LEDs 110-240V/Zone1/Wide/M25

Hadar Floodlight 96x 1W LEDs

110-240V/Zone1/Wide/M25

Varenr: HDL106N2HWVW504

HDL106N

The HDL106N is an outstanding luminaire allowing up to six modules interlinked, providing an effective and efficient replacement for conventional high power HID floodlights, up to 400W.

With multiple beam options available, and a wide ambient range, this is a truly universal solution for all Zone 1 applications.



Type of Protection

Ex e mb (Increased Safety, Encapsulation)

Ex t (Dust Protected Enclosure)

ATEX Classification

Group II Category 2 GD

Area Classification

Zone 1 and Zone 21 areas to EN 60079-10-1

And EN 60079-10-2 with installation to EN 60079-14

Certificate

EC Type Examination Certificate

   Sira 09ATEX5159X

IECEx Certificate of Conformity

   IECEx SIR 09.0064X

Coding

Ex e mb IIC T4/T3 Gb

Ex tb IICT103°C Db

TA = -20°C to +50°C/+59.5°C

Enclosure

Aluminium Alloy with epoxy powder finish

Entry

2 x M25 cable entries

Termination

3 core 4mm2 max. conductor with looping

Installation

Stirrup mounting bracket

Control Gear

Electronic Driver

Colour Temperature (CCT)

Refer to ordering Matrix

Maintenance

M8 Hex Head and M6 SKT Head

Ingress Protection

IP66/67

Surge Protection

4kV line to line, 6kV line to earth

Electrical Supply

Refer to ordering Matrix



Features

  • Instant on crisp white light output
  • Highly Energy Efficient
  • 80,000 maintenance free hours at 25°C
  • Lower power consumption than HID lamps
  • Modular design allowing up to six interlinked luminaires, each providing a delivered output > 5000lm
  • Lightweight (6kg per module) lighting solution



Ordering reference:

Version:

  • 0 - 24LEDs
  • 1 - 48 LEDs
  • 2 - 96 LEDs
  • 3 - 144 LEDs

Voltage:

  • H - 100-254V AC
  • L - 18-54V AC/DC* (Upper ambient becomes +55°C)

Beam Pattern:

  • N - Narrow
  • M - Medium
  • W - Wide
  • X - Extra Wide

Mount:

  • H - Jorizontal Mount (Single Unit)
  • V - Vertical Mount (Twin/Triple unit)
  • C - Ceiling Mount

Light:

  • W - Cool White (Standard)
  • X - Warm White

Cable Entries:

  • 0 - M20
  • 5 - M25 (Standard)

Other Options:

  • 04 - RAL 7035 (Grey)
