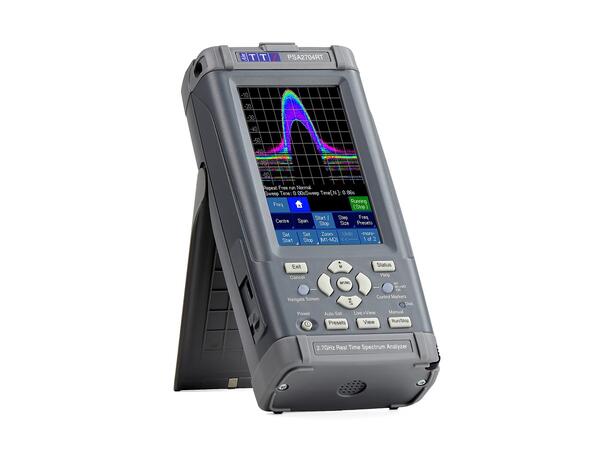

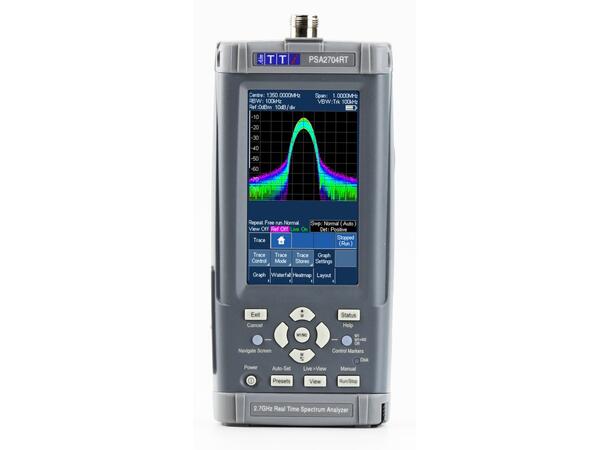

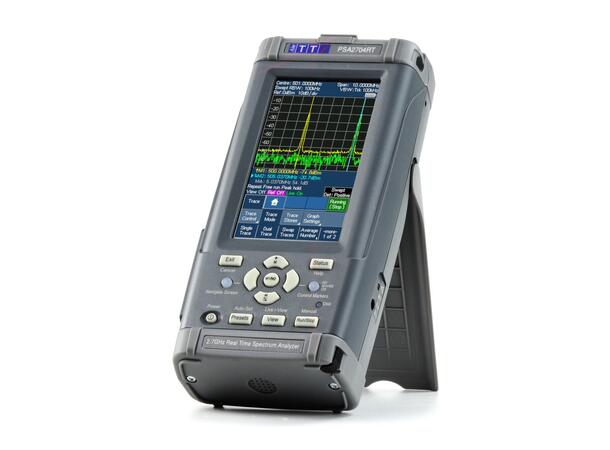

AimTTi PSA2704RT Handheld RF Spectrum Analyzer
with 2,7GHz bandwidth and real time FFT capabilityTrue handheld battery powered RF spectrum analyzers
- 2.7GHz frequency range
- -131dBm DANL
- Max input signal +17dBm
- Real time signal capture 1.35kHz to 10.8MHz (PSA2704RT)
- Swept FFT spectrum analysis alongside conventional swept mode
- Seamless FFT stitching delivers full-span coverage at faster sweep times
- Resolution bandwidth defined by frequency bin width and selectable window functions
- Six window functions to optimize accuracy for different applications
- Seven detector modes for flexible and precise signal analysis
- Zero span with AM and FM audio demodulation
- Flexible display modes: full, combined or split-screen views
- Amplitude vs time (zero span) with trace and/or waterfall
- Amplitude depth vs. time with trace and/or waterfall
- Frequency deviation vs time with trace and/or waterfall
- Smart markers with selectable peak tracking
- Frequency counter with 1Hz resolution
- Autofind automatically sets sweep parameters for the highest signal found
- Up to 4 hours battery operation
- Limit lines and limit patterns with limits comparator
- Data logging of peak values, complete traces or screen images from timer, external trigger or limits comparator
- Sweep triggering from external trigger or limits comparator
- Compensation tables, fixed offsets and 75 Ohm compensation
- Custom presets
- Capability to show screen contents on a PC
- Modulation waveform display
- Automatic measurement of CP, ACR and OBW
The PSA Series 4 is the latest member of the popular PSA family, delivering a comprehensive upgrade in performance, useability and display modes. It preserves the lightweight, handheld form factor that field engineers value, while adding a Real Time analysis mode that captures transient events as they occur. Real Time capability makes the PSA Series 4 a powerful tool for modern RF challenges, giving users a continuous, gap-free view of the spectrum for rapid detection of intermittent or fast-changing signals.
