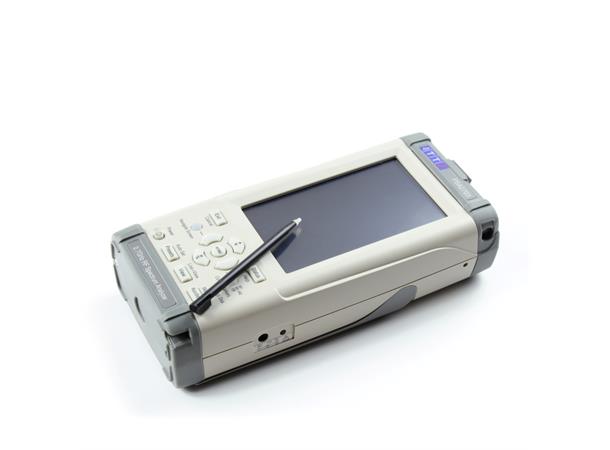

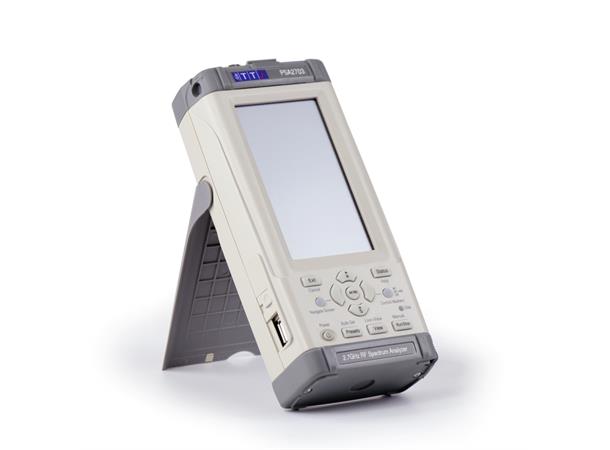

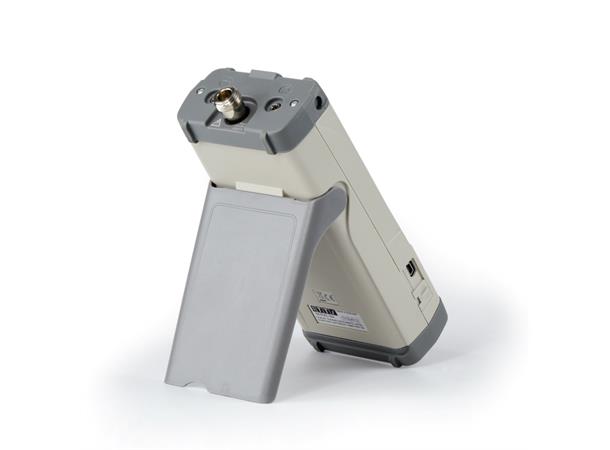

AimTTi PSA2703USC Spectrum Analyser

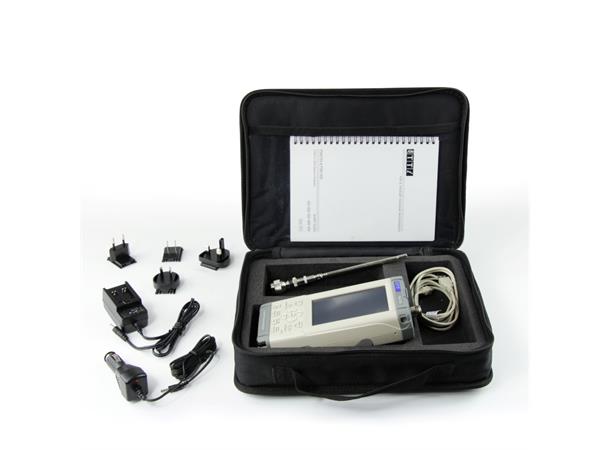

Handheld 2.7GHz+ SC Kit and U01

Varenr: PSA2703USC
24 150,00

The AimTTi PSA Series 3 - Handheld RF Spectrum Analyzer with 1MHz to 1.3 or 2.7GHz bandwidth options

True handheld battery powered RF spectrum analyzers

  • 1MHz to 1300MHz or 2700MHz frequency range
  • Resolution bandwidths of 300Hz to 10MHz 1:3:10
  • -105dBm typical noise floor at -40dBm reference level
  • Measurement in dBm or dBµV, mV or µW
  • Zero span mode with AM and FM audio demodulation
  • Trace modes of normal, peak hold and trace average
  • Live, View and Reference traces in contrasting colours
  • Twin markers with readout of absolute & difference values
  • Smart marker movement with selectable peak tracking
  • Frequency counter with 10Hz Resolution
  • Frequency presets and independent state storage
  • Auto-find automatically sets sweep parameters for the highest signal found
  • Unlimited storage for waveforms, set-ups and screens
  • User assignable file names, file stamping from real-time clock
  • USB interfaces for Flash drives and PC connection
  • Comprehensive status and context sensitive help screens
  • More than 3 hours continuous operation from a charge
  • Smaller and lighter than other spectrum analyzers (weight only 0.58 kg)

OPTION U01 ADDS:

  • Limit lines and limit patterns with limits comparator
  • Data logging of peak values, complete traces or screen images from timer, external trigger or limits comparator
  • Sweep triggering from external trigger or limits comparator
  • Compensation tables, fixed offsets and 75 Ohm compensation
