AimTTi EL-R & EX-R Series Bench DC Power Supply, Linear Regulation - Single, Dual or Triple Outputs, analogue control, 30 to 130 watts, silent cooling
Precision laboratory power supplies - single, dual and triple outputs
EX-R Series - mixed-mode regulated - 175 watts to 420 watts
EL-R Series - linear regulated - 30 watts to 130 watts
Common features: compact size, silent cooling, 4 digit meters, remote sense
EL-R series

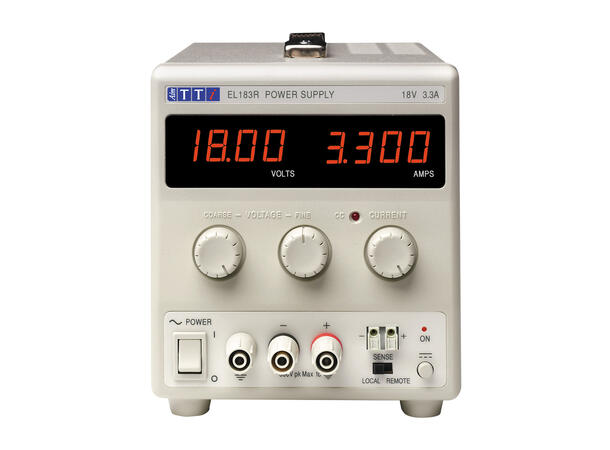

- Single outputs, 30V/1A, 18V/3.3A, 56V/1.1A, 15V/5A, 30V/3A

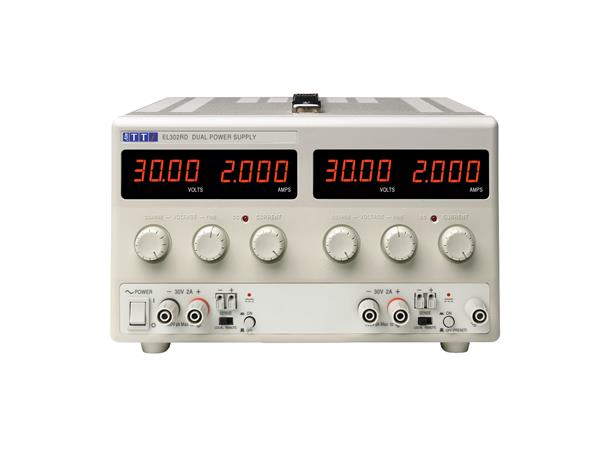

- Single, dual or triple outputs, 30V/2A
- Independent digital voltage and current meters for each output with 4 digit resolution
- Switchable local or remote sensing
- Constant voltage or constant current operation
- Variable 1.5 - 5.0V auxiliary output at 2A (EL302RT)
- Compact design uses less bench space
- Silent fan-free cooling
- DC output switches, automatic mode indication

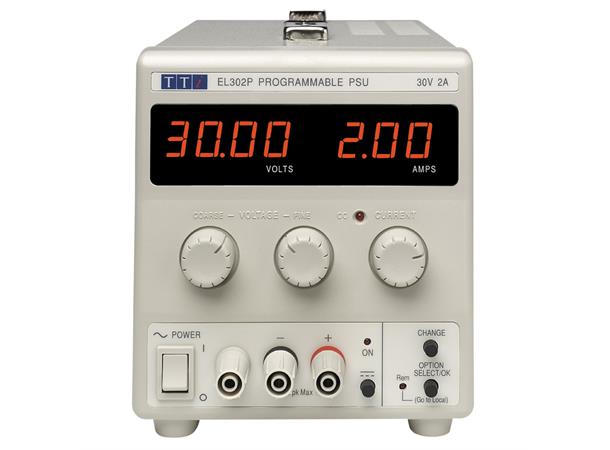

- RS232 or USB controlled models available (30V/2A single)
EX-R series
- Single outputs, 35V/5A, 18V/10A, 42V/10A, 20V/20A
- Dual or triple outputs, 35V/4A
- Independent digital voltage and current meters for each output with 4 digit resolution
- Switchable local or remote sensing
- Constant voltage or constant current operation

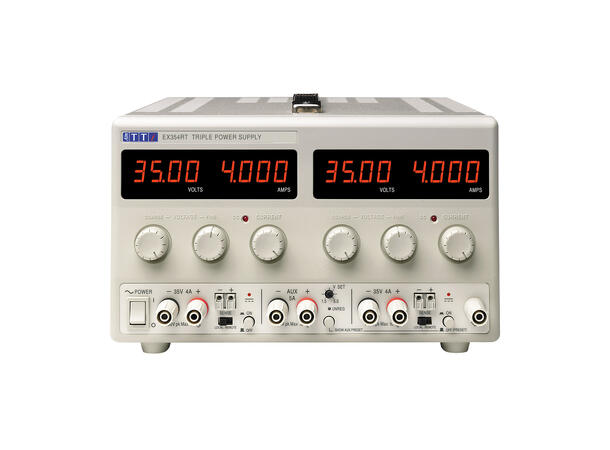

- Variable 1.5 - 5.0V auxiliary output at 5A (EX354RT)
- Compact design uses less bench space
- Silent fan-free cooling (not EX202R/EX4210R)
- DC output switches, automatic mode indication

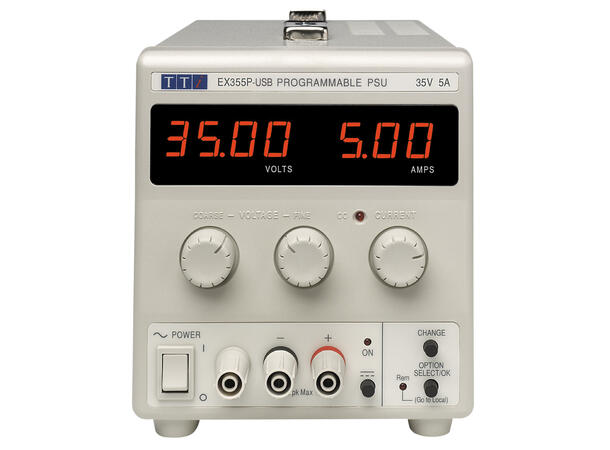

- RS232 or USB controlled models available (35V/5A single)

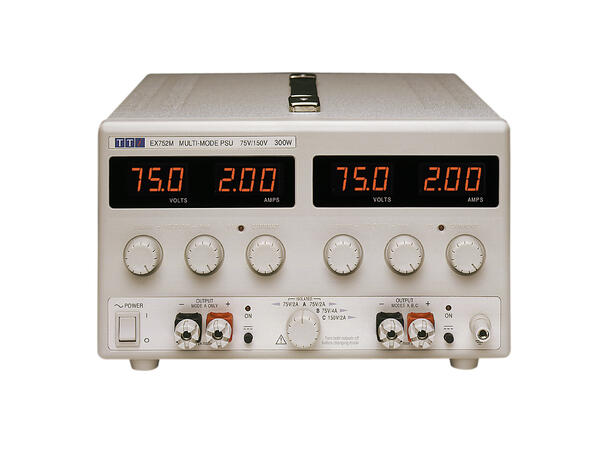

- Multi-mode dual model 2x(75V/2A) or 75V/4A or 150V/2A
