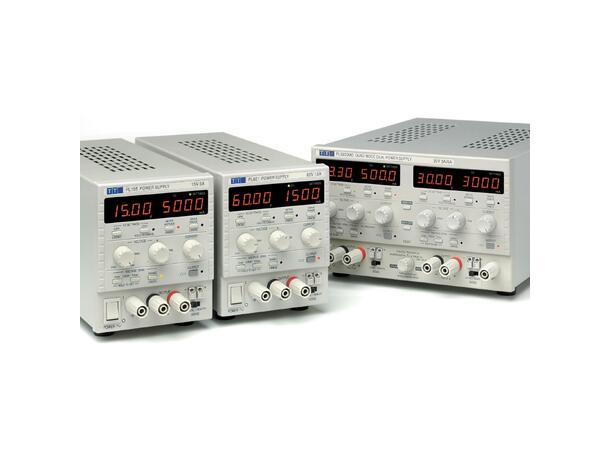

AimTTi PL-P series
Bench/System Linear Regulated DC Power Supply with Smart Analog Controls, Single, Dual or Triple Outputs, 48 to 242 watts, with/without Remote Interfaces
- Single, dual or triple output models
- Models from 6V/8A up to 60V/1.5A
- Linear regulation - for the best performance
- Ultra-compact design - uses up less space
- True Analogue controls - for ease of use
- S-Lock function - instantly lock settings
- V-Span function - customize the voltage range
- Low current range and current meter averaging
- DC output switches and "view limits" button
- Selectable remote sense terminals
- Independent, Isolated Tracking, Ratio Tracking and True Parallel modes on dual & triple models
- High current low voltage output on triple output model
Versions (with -P suffix on the model name) adds:
- RS-232, USB and LAN (Ethernet)
- LAN Interface conforms with LXI standard
- Analogue remote control of V and I (single output models only)
- Front and rear terminals
P(G) Version
- as -P version above plus GPIB interface
