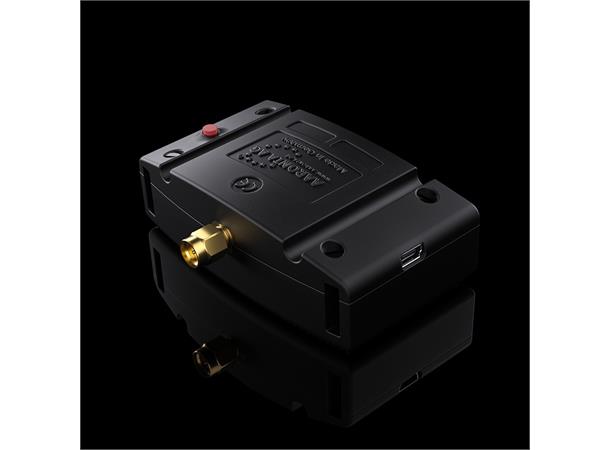

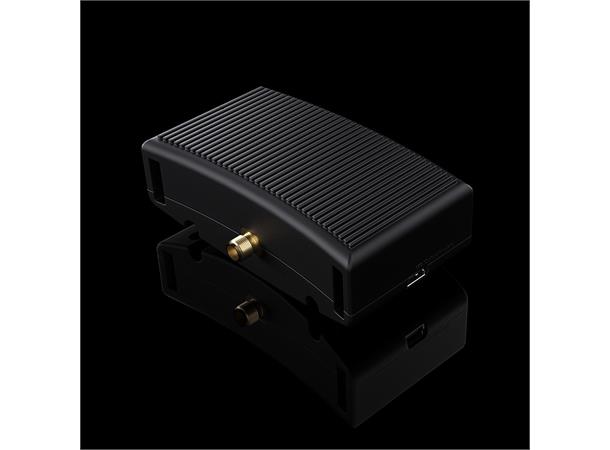

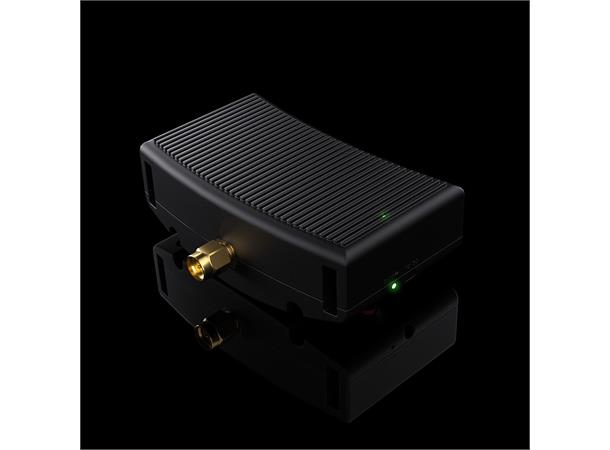

Aaronia RF Preamp UBBV DC20

DC - 20GHz / 15dB Gain

Varenr: 303/001
Alt. varenr: 303001

The allround amplifier up to 20GHz. Works with any brand of Spectrum Analyzers.

- A "must have" for EMC measurements
- Amplification of very weak signals
- Boosts any antenna gain
- Compensation of negative antenna gain

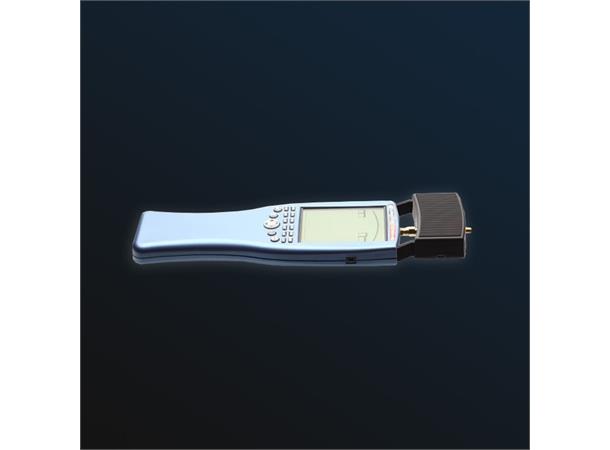

Works with any brand of Spectrum Analyzers and directly fits to any SPECTRAN e.g. the SPECTRAN V5. Broadband sensitivity increases by up to 15dB.

Newly designed microwave chips enable the UBBV DC20 to have gain up to 20GHz. The UBBV DC20 is the ideal general purpose RF amp that you'll wonder how you got along without. Enables maximum performance particularly when measuring extremely weak signals. A "must have" to get the maximum performance out of any SPECTRAN V5 unit.

Made in Germany: All UBBV DC20 Preamplifier are developed, individually produced and calibrated in Germany at the Aaronia factory.

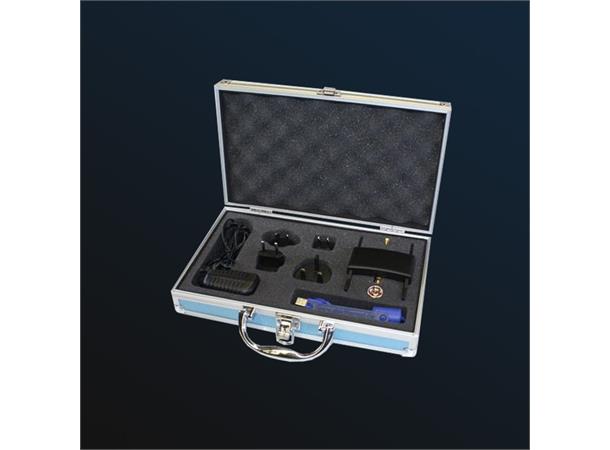

Included in delivery: All UBBV DC20 Preamplifier will be shipped with many accessories in a high-value aluminum carrying case. More details can be found at above section "Included in delivery".

KEYFACTS
Frequency Range DC bis 20GHz
Noise 2.5 dB (typ.)
Gain 14 dB (typ.)
Max. Input +15 dBm
Max. Output +16 dBm
Impedance 50 O
Connector IN SMA (f)
Connector OUT SMA (m)
Weight 146 g
Dimensions 81x61x29 mm
