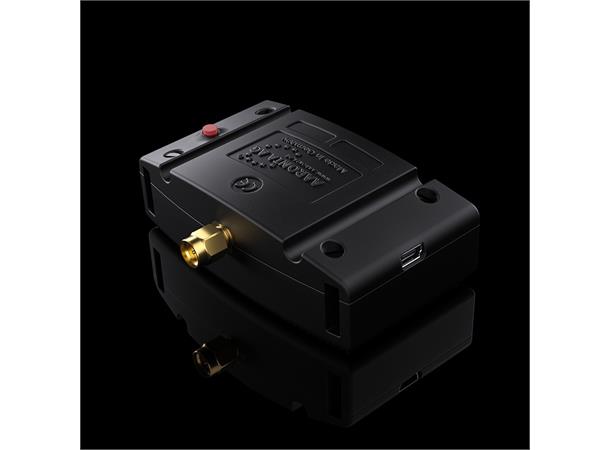

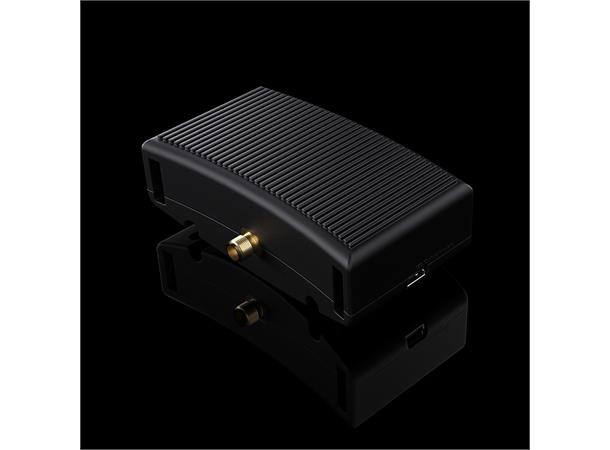

Aaronia 40dB EMC Preamp UBBV2

1MHz - 10GHz / 40dB Gain

Varenr: 302/005
Alt. varenr: 302005

40dB external, super low-noise 40dB preamplifier

Enables maximum performance particularly when measuring extremely weak signals at a EN55011, EN55022 or EN50371 EMC-test.

Frequency range: 1MHz-10GHz (500kHz with 3dB deviation)
Connectors: SMA (f), SMA (m)
Power: 7.4 V / 800 mAh LiPo akku pack

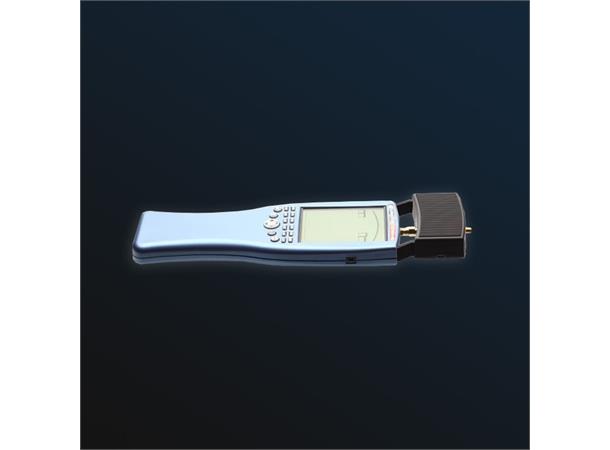

If you use the BicoLOG antennas or the PBS1 Probeset and EMC-Sniffer this amplifier is a MUST HAVE to get the best performance!

Already included in the EMC-Bundles 1, 2 and 3

KEYFACTS
Frequency Range 1 MHz to 10 GHz
Noise 3.5 dB (typ.)
Gain 40 dB (typ.)
Max. Input +15 dBm
Max. Output +15 dBm
Impedance 50 O
Connector IN SMA (f)
Connector OUT SMA (m)
Weight 146 g
Dimensions 81x61x29 mm
