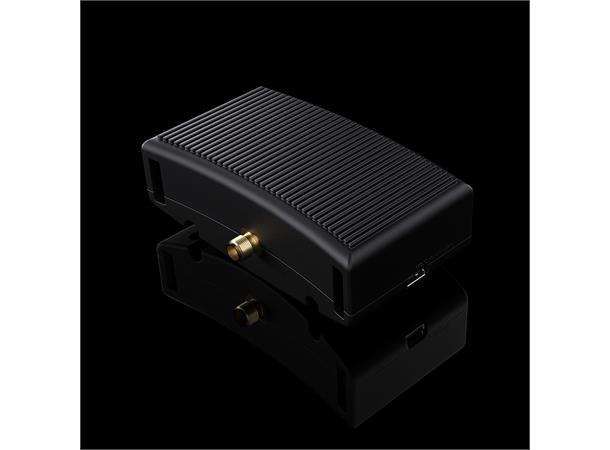

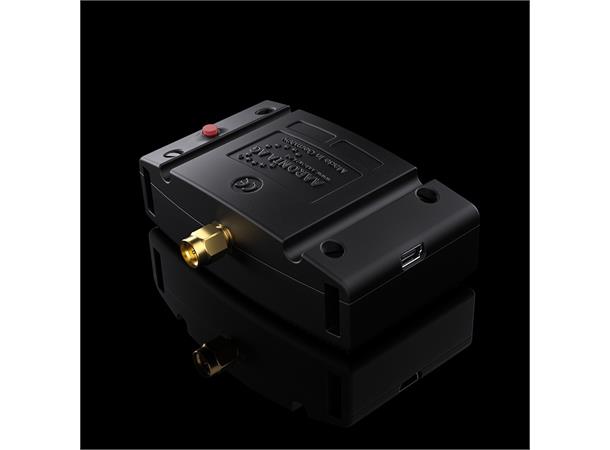

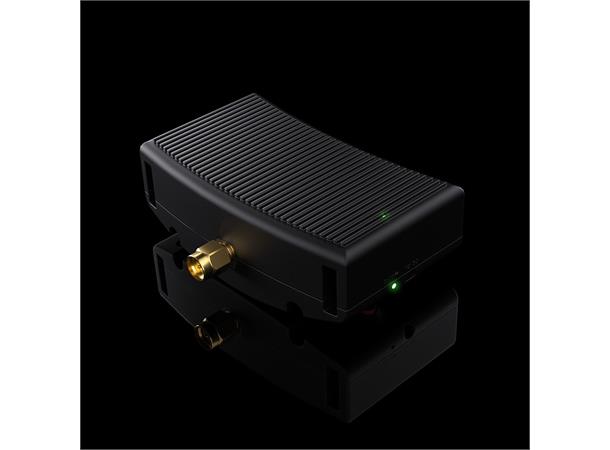

Aaronia 40dB EMC Preamp UBBV1

1MHz - 1GHz / 40dB Gain

Varenr: 302/004
Alt. varenr: 302004

External, super low-noise 40dB broadband preamplifier.

Enables maximum performance particularly when measuring extremely weak signals at a EN55011, EN55022 or EN50371 EMC-test.

Frequency range: 1 MHz-1 GHz
Connectors: SMA (f), SMA (m)
Power: 7.4 V / 800 mAh LiPo akku pack

If you use our BicoLOG antennas or our PBS1 Probeset and EMC-Sniffer this amplifier is a MUST HAVE to get the best performance!

Already included in the EMC-Bundles 1, 2 and 3

KEYFACTS
Frequency Range 1 MHz to 1 GHz
Noise 3.5 dB (typ.)
Gain 40 dB (typ.)
Max. Input +15 dBm
Max. Output +15 dBm
Impedance 50 O
Connector IN SMA (f)
Connector OUT SMA (m)
Weight 146 g
Dimensions 81x61x29 mm
