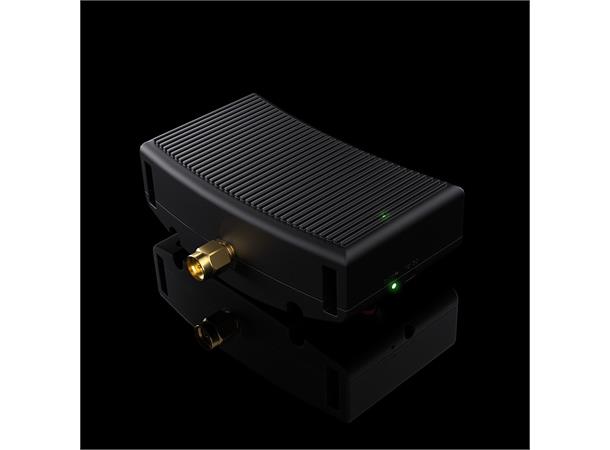

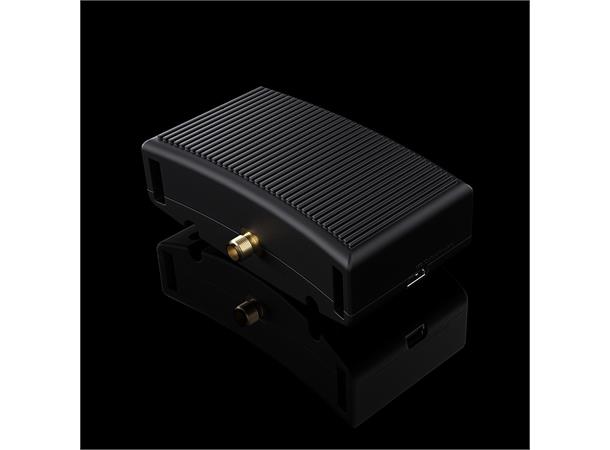

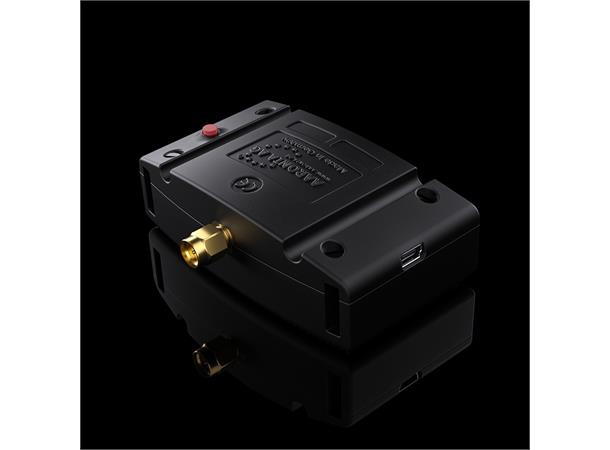

Aaronia Bypass Preamp UBBV 1060 BPA

100MHz - 6GHz / 23dB Gain

Varenr: 302/001
Alt. varenr: 302001

Bypass low noise RF Pre-amplifier up to 6GHz.

Works with any brand of Spectrum Analyzers and directly fits to any SPECTRAN Spectrum Analyzer. Broadband sensitivity increase by up to 23dB.

The UBBV 1060 BPA is a low-noise, pass-through amplifier offering industry-leading performance over its full frequency range from 100 MHz to 6 GHz. It is even usable starting from 50MHz with a few dB amplification. It contains internal switching, allowing the user control of the amplifier to handle both high and low signal levels by bypassing the LNA in the presence of large signals.

The UBBV 1060 BPA achieves excellent noise figure performance, enabling the combination of very wide band performance and flat gain. Changing the operation mode from standard to bypass-mode and off is done by a simple press of a button.

Technical Details:

  • Frequency Range: 100MHz (50MHz) to 6GHz
  • Gain: 22dB at 2GHz
  • Noise: 1,4dB at 2GHz
  • IP3: +48dBm typ. (bypass mode)
  • Max. In. Power (AMP - ON): 8dBm / 20dBm (max. 5 min)
  • Max. In. Power (AMP - BYPASS): 16dBm / 30dBm (max. 5 min)
  • IP3: +48dBm typ. (bypass mode)
  • P1dB: +21dBm at 2GHz
  • Max. power at RF output: +21dBm
  • Input: 50 Ohm SMA (f)
  • Output: 50 Ohm SMA (m)
  • 8 hours battery run-time
  • Incl. transport case, power supply incl. adapters, manual, SMA tool & USB cable
  • Weight: 146gr
  • Dimensions: 81x61x29mm

Made in Germany:
All UBBV Pre-amplifier are developed, produced and calibrated in Germany.

KEYFACTS
Frequency Range 100 MHz - 6 GHz
Noise 1.4 dB (typ.)
Gain 22 dB (typ.)
IP3 (Bypass Mode) +48 dBm (typ.)
Max. Output +21 dBm
Impedance 50 O
Connector IN SMA (f)
Connector OUT SMA (m)
Weight 146 g
Dimensions 81x61x29 mm
