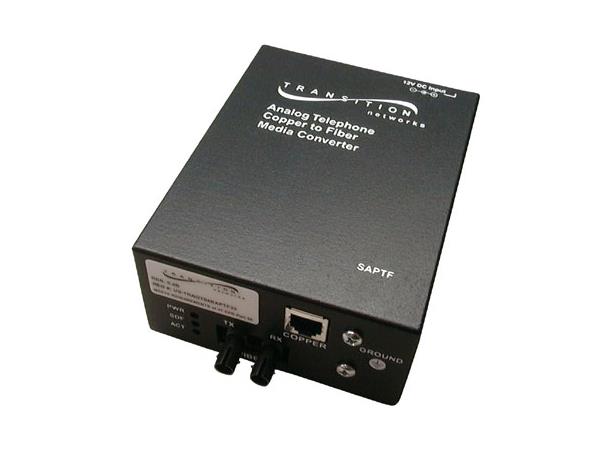

Connect central-office voice grade signals to distant Plain Old Telephone equipment (POTS) utilizing standard telephone signaling. Two units are required to implement an end to end system. Unit A connects to a telephone line or PBX and has the ability to detect ringing voltages and to act as a telephone (LINE SIDE FXS). Unit B is the reciprocal unit and has the ability to act as a Central Office and connects to a telephone device (CUSTOMER SIDE FXO). Devices must be used in pairs. Typical installation will include a chassis card [CAPTF] installed in the Point System™ locally and a stand-alone device installed at the remote location.
 (+)
| Standards | FCC Part 68, TBR21 | | Analog Port | (Telephone Emulation or FXS)
Connector: RJ-11
Impedance: 600 ohms
REN: 0.48
Loop Current: 20 to 60 ma.
Insertion Loss: 0.0 +/-1.0 dB at 1000 Hz when both ports are terminated at 600 ohms | | Analog Port | (Central Office Emulation or FXO)
Impedance: 600 ohms
Battery Source: 48 VDC +/- 5V
Ringing Supply: 90 Vp-p
Ring Frequency: 15 – 25 Hz. (Reproduces frequency detected by side A)
Ring Cadence: Reproduces cadence detected by side A
(Insertion Loss: 1.0 +/- 1.0 dB @ 1000 Hz when both ports are terminated at 600 ohms | | Voice Frequency | 300 Hz - 3 KHz | | Switches/Option Jumpers | Automatic Ring Down/Normal | | Status LEDs | LED colors are Green
Fiber Link: ON indicates fiber link up;
In Use: ON indicates unit in use; Flashing indicates ringing;
Power: ON indicates power is on | | Dimensions | 105 Model:
Width: 3.25" [82 mm]
Depth: 4.7" [119 mm]
Height: 1.0" [25 mm]
115 Model:
Width: 3.7" [94 mm]
Depth: 4.7" [119 mm]
Height: 1.8" [46 mm] | | Power | External AC/DC provided; 12 VDC, 1.25A; unregulated; standard; UL Listed | | Environment | 0 – 50°C Operating Temperature;
-25°C – 85°C Storage Temperature
5% – 95% humidity (non condensing); 0 – 10,000 ft. | | Shipping Weight | 2 lbs. (.90 kg) | | Safety Compliance | Wall Mount Power Supply:
UL listed and CSA certified | | Regulatory Compliance | FCC Class A; VCCI Class A; EN 55022 (CISPR 22) Class A; ICES 003; CE Mark | | Warranty | Lifetime |
| |
