Description

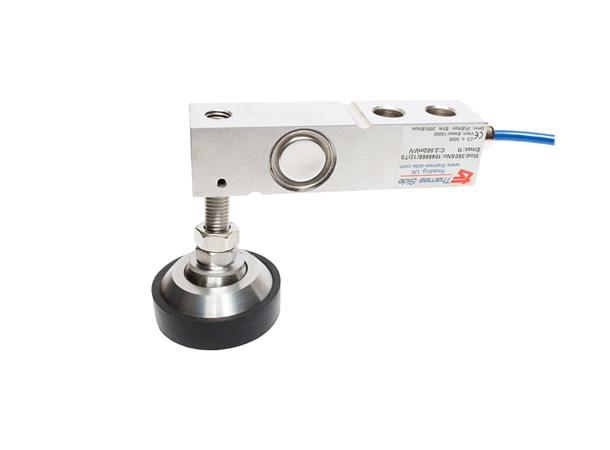

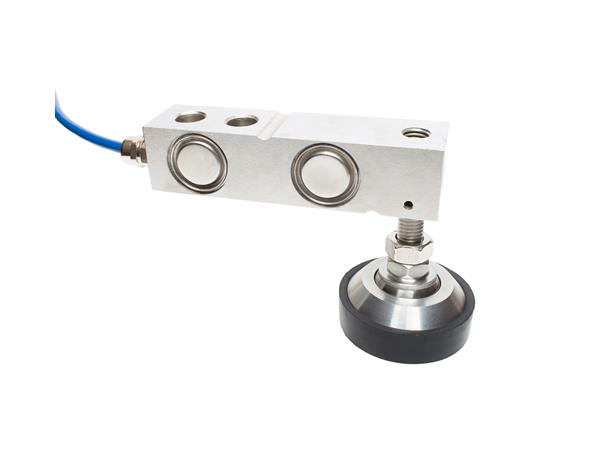

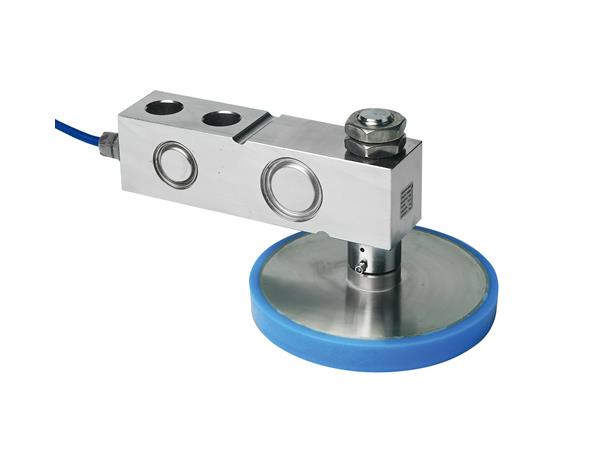

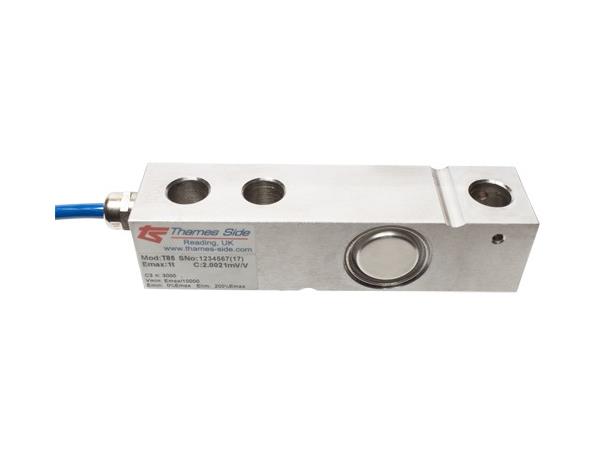

The T85 stainless steel shear beam is a high accuracy load cell that is widely used in industrial weighing applications worldwide.  It has OIML approval (which is ideal in legal-for-trade applications) and it can withstand harsh manufacturing environments due to its fully welded and hermetically sealed design (IP68/IP69K).

It is suitable for a wide range of applications, thanks to its OIML approval to 3000 divisions (Class C3) and ATEX approval for use in hazardous areas where an explosion risk exists.  For dust zones 20, 21 and 22 it has ATEX certification that does not require the use of safety barriers.

Capacities range from 300kg to 10,000kg (with a new capacity at 2,500kg).

For use in platform scales, the T85 load cell has optimised pre-corner adjustment, calibrated in mV/V/Ohm by output current matching at ± 0.05%. This reduces corner correction setup time to a minimum.

Key features

Fully welded and hermetically sealed stainless steel construction, with protection class IP68/IP69K

Complies with OIML R60 regulations up to 3000 divisions (C3) for scales according to EN 45501

Nominal capacities: 300kg, 500kg, 750kg, 1000kg, 1500kg, 2000kg, 2500kg, 3000kg, 5000kg, 7500kg and 10,000kg

Wide operational temperature range: -30 °C to +70 °C

Options: ATEX approval, Parylene coating for the load cell when used in extremely harsh environments, as well as a version for high temperature use

Typical applications:

Platform scales

Big bag (FIBC) filling

Belt scales and conveyors

Tank and vessel weighing
