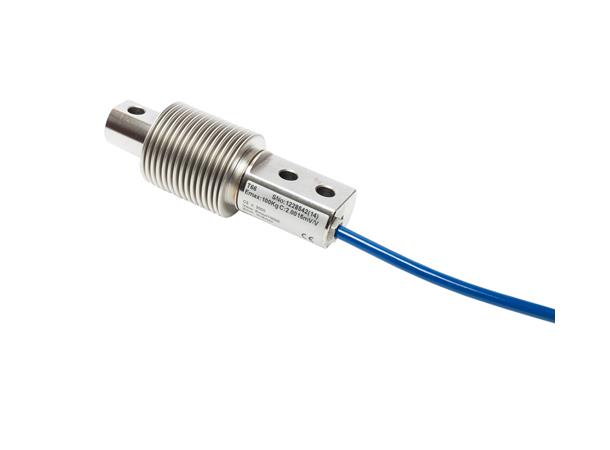

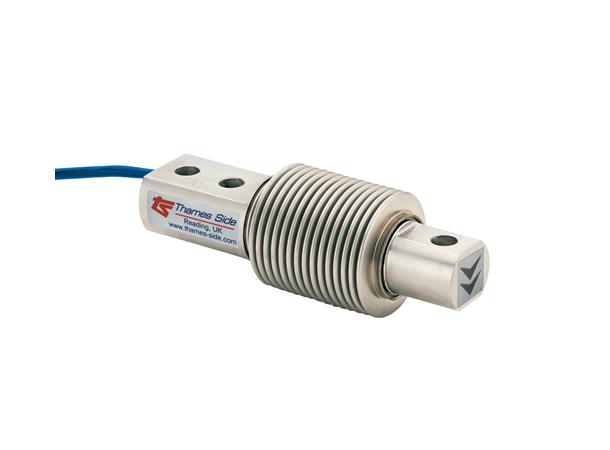

The T66 high precision stainless steel bending beam is a world class load cell and widely used in industrial weighing applications. It offers extremely high accuracy with OIML approval and can withstand harsh manufacturing environments.
Fully welded and hermetically sealed stainless steel construction, with protection class IP68/IP69K
Complies with OIML R60 regulations up to 3000 divisions (C3) or 6000 divisions (C6) for scales according to EN 45501
Nominal capacities: 5kg, 10kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg
Nominal capacities (C6 version): 50kg, 75kg, 100kg, 150kg, 200kg, 250kg
6 wire (with sense wires) configuration as standard
Wide operational temperature range: -30 °C to +70 °C
Options: Parylene coating for the load cell when used in extremely harsh environments, as well as a version for high temperature use
