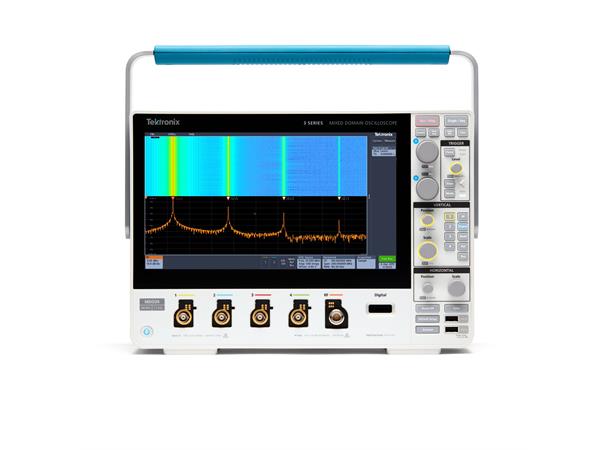

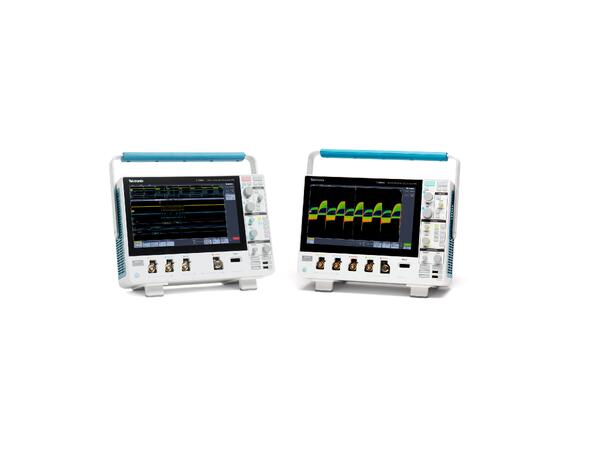

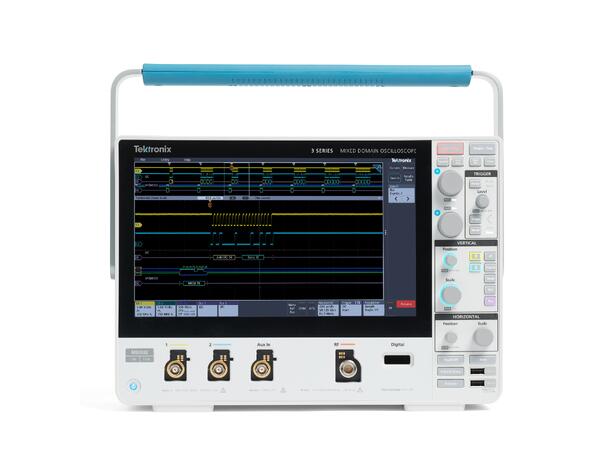

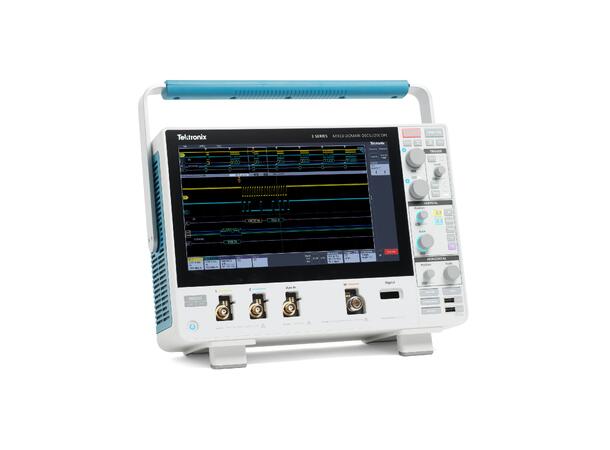

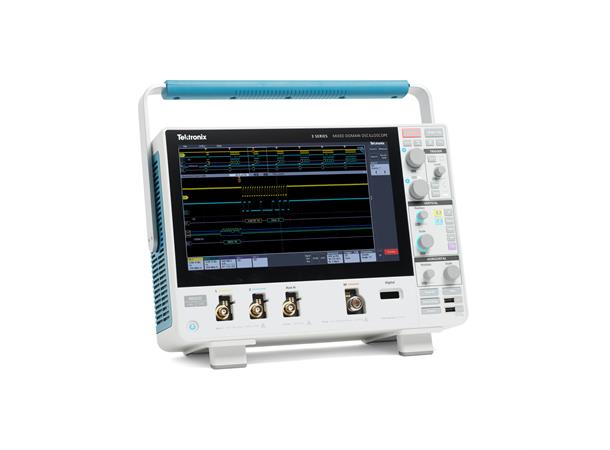

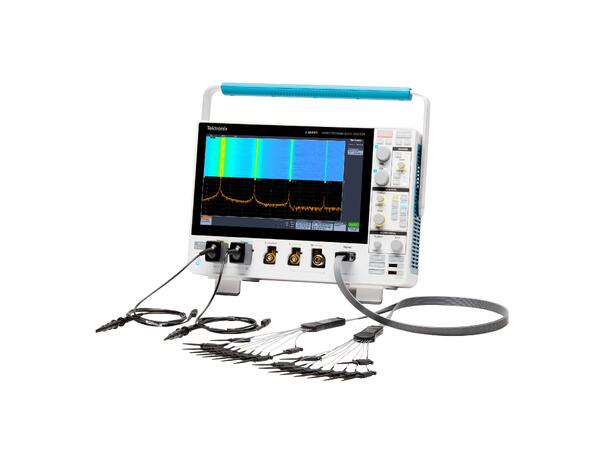

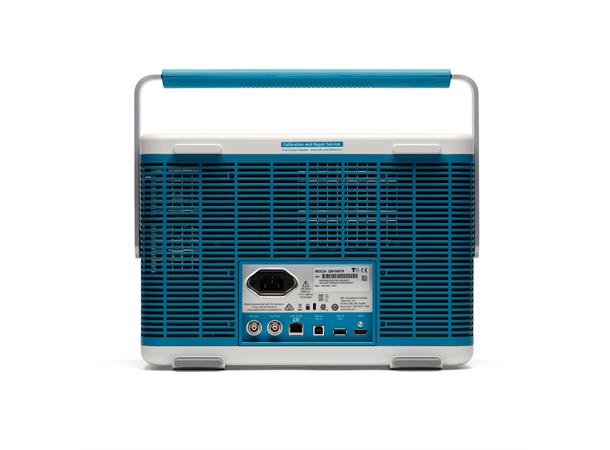

3 Series MDO Mixed Domain Oscilloscope

2 or 4 Channels, 100 MHz to 1 GHz

Varenr: Tektronix MDO3
30553 30553 30553 30553 30553 30553 30553

3 Serie MDO har 11,6’’ HD (1920x1080) kapasitiv berøringsskjerm. 2 eller 4 innganger, med opsjoner for 16 digitale kanaler og innebygd spektrum analysator som leveres i 1 GHz eller 3 GHz versjoner.

Kampanjen gjelder t.o.m. 31. mars 2022

Du sparer opptil 69 %!
GRATIS båndbredde oppgradering til neste nivå båndbredde og

GRATIS opsjoner:

3-BND - samlet applikasjonspakke med I2C, SPI, CAN, LIN & USB samt automatisk power analyse
3-MSO - 16 digitale kanaler; frigjør analoge kanaler og se flere kanaler med denne oppgraderingen
3-AFG - Arbitrær funksjonsgenerator med 13 forhåndsdefinerte kurveformer og arbitrær signalgenerering
Nevnte vi at 1 GHz spektrumanalysator er standard på MDO3 serien? ( opsjon for 3 GHz tilbys også)



Tektronix MDO3 serie spesifikasjoner

With the largest display in class, improved low-level signal measurement accuracy and industry-leading probe performance, the 3 Series MDO sets a new standard for bench oscilloscopes. Whether you’re testing your baseband design for IoT or just
for simple EMI sniffing, the 3 Series has a unique true hardware spectrum analyzer built right in with superior RF test erformance and guaranteed RF specifications.



Key performance specifications

2 and 4 analog channel models

100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz bandwidth models

Bandwidth is upgradable (up to 1 GHz)

Up to 5 GS/s sample rate

10 M record length on all channels

>280,000 wfm/s maximum waveform capture rate

Standard passive voltage probes with 3.9 pF capacitive loading and 250 MHz, 500 MHz or 1 GHz analog bandwidth

  • Spectrum Analyzer
    • Frequency range: 9 kHz - 1 GHz (standard) or 3 GHz (optional)
    • Ultra-wide capture bandwidth up to 3 GHz
  • Arbitrary Function Generator (optional)
    • 13 predefined waveform types
    • 50 MHz waveform generation
    • 128 k arbitrary generator record length
    • 250 MS/s arbitrary generator sample rate
  • Digital Channels (optional)
    • 16 digital channels
    • 10 M record length on all channels
    • 121.2 ps timing resolution
  • Serial Bus Decode, Triggering and Search (optional)
    • Serial bus support for I2C, SPI, RS-232/422/485/UART, USB 2.0, CAN, CAN FD, LIN, FlexRay, MIL-STD-1553, ARINC429, and Audio standards
  • Digital Voltmeter / Frequency Counter (Free with product registration)
    • 4-digit DC, AC RMS, and DC+AC RMS voltage measurements
    • 5-digit frequency measurements

Typical applications

  • Embedded design and IoT
  • Discover and solve issues quickly by performing system level debug on mixed signal embedded systems including today's most common serial bus technologies with the 3 Series MDO and support for a broad set of common serial buses.

  • Power design

    Make reliable and repeatable voltage, current, and power measurements using automated power quality, switching loss, harmonics, ripple, modulation, and safe operating area measurements with the widest selection of power probes in an affordable solution.

  • Education

    Managing multiple instruments on a bench can be troublesome. The 3 Series MDO combines analog, digital, and RF measurements with a signal source in a single, small (5.9 in., 149 mm deep) instrument. The combination of a small instrument and high level of integration aids in the teaching of various electronics principles as well as in its usage for more sophisticated lab experiments. Full upgradeability enables adding functionality over time as needs change or budgets allow.

  • Manufacturing Test and Troubleshooting

    Size and space constraints can play havoc on a manufacturing floor. The 3 Series MDO minimizes rack or bench space by integrating multiple instruments into one small package. Integration reduces cost associated with utilizing multiple different instrument types in manufacturing test or troubleshooting stations.

  • Service Installation and Maintenance

    Having the right instruments when and where you need them is critical. The 3 Series MDO combines analog waveforms, digital logic, and spectrum analysis in a lightweight (11.7 lbs, 5.3 kg), portable package - making it the perfect choice where space is limited and flexibility is desired.






Produktinformasjon

Gruppe 1 Test og Måling
Gruppe 2 Oscilloskop
Gruppe 3 MDO3 serie
Produsent Tektronix
