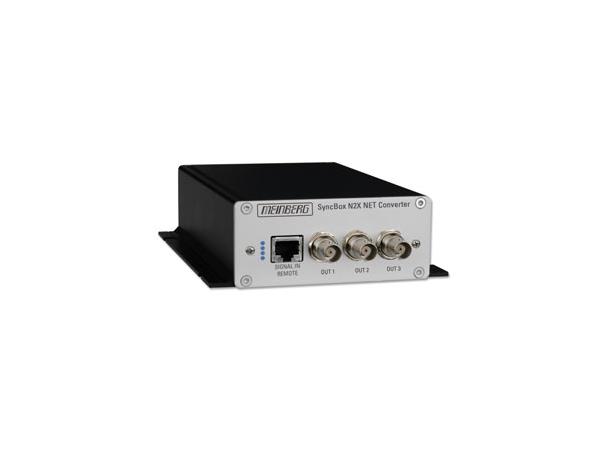

Meinberg SyncBox N2X DC, 2x DFK-TTL, 1xBNC-TTL, RS232

Meinberg SyncBox N2X

DC, 2x DFK-TTL, 1xBNC-TTL, RS232

Varunummer: N2X/PP-1/PP-2DFK/DC

The SyncBox/N2X operates as a IEEE-1588 multicast slave clock or NTP client in a PTP / NTP network and with its interfaces this converter can synchronize many different systems. Our IEEE-1588 Grandmaster or LANTIME NTP Server, such the LANTIME M600, can be used as a reliable time source.


•The following output signals are available:
PPO (PPS, PPM, PPH, TC DCLS, DCF77 Marks)
10 MHZ
TC AM
Frequenz Synth. sine
serial time string (Meinberg, Uni Erlangen, NMEA)IEEE 1588-2008 (PTP V2) compatible ordinary clock
•Serial COM port for initial configuration and time telegrams
•Supported Protocols: IPv4, NTP, PTP / IEEE 1588-2008, DHCP
•Signal outputs with fiber optical ST connectors available
•Generates several different modulated (AM) and unmodulated (DCLS) IRIG time code signals
•10/100Base-T Ethernet interface - Power over Ethernet option available on request
•Configuration and montoring with MBGMON



SyncBox/N2X/PP-1/PP-2DFK/DC

PTP/NTP Client with Timecode/Pulse/Frequency outputs for network-based synchronization of devices that require RS232 timestrings, 1PPS or 1PPM pulses, IRIG timecodes (only DCLS) or frequencies.

 1 x LAN interface 10/100 MBit, RJ45 connector
----------------------------------------------------------------------------------------------
 Signal Outputs:
 1 x RS232 interface, independent, 9pin D-Sub female connector,
      with multi data formats timestrings.

1 x Pout-1:
      Pulse/synthesizer for frequencies from 0,1Hz up to 10MHz,
      Programmable Pulses outputs (e.g. PPS; PPM; PPH...),
      or Time Code DCLS, Pulse-width modulated output (IRIG/AFNOR/IEEE1344),
      TTL into 50 ohm, BNC female connector

2 x Pout-2-3:
      Pulse/synthesizer for frequencies from 0,1Hz up to 10MHz,
      Programmable Pulses outputs (e.g. PPS; PPM; PPH...),
       or Time Code DCLS, Pulse-width modulated output (IRIG/AFNOR/IEEE1344),
       TTL into 50 ohm, 2pin DFK male  connector
----------------------------------------------------------------------------------------------
Technical specifications:
Power supply: DC  20-60 V DC
Power consumption: max. 5W
Built-up in an aluminium housing
 (105mm  x 44mm  x 165mm / width x height x depth)
----------------------------------------------------------------------------------------------
