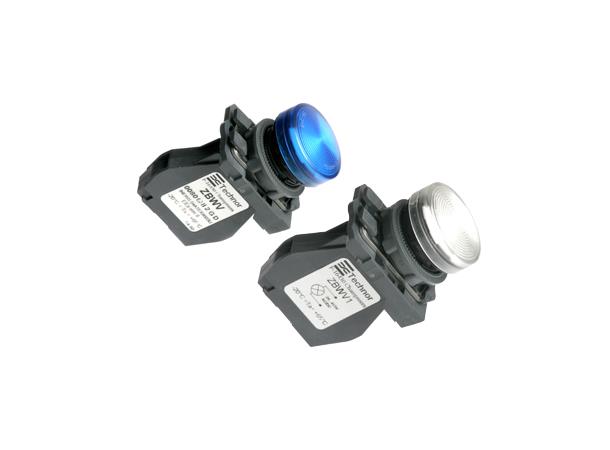

Illuminated Pushbuttons
The illuminated pushbuttons with high luminosity
are available in 5 colours and equipped with a metal bezel. They offer high performances and have a low energy consumption. Two contact blocks
can be used per illuminated pushbuttons.
Specifications
Material Metal
Operating
temperature -20°C … +75°C
Approval:
- ATEX INERIS04ATEX9003U,
INERIS02ATEX9007U
EN/IEC: 600079-0, 60079-1, 60079-7,
60079-31
II 2 GD Ex d e IIC Gb
Ex d e mb IIC Gb
- IECex IECEx
INE 16.0039U
IEC: 60079-0, 60079-18, 60079-31
60079-7
Ex eb mb IIC Gb
Ex tb IIC Db
Mounting Panel cut-out
Ø 22,5 mm
Type
of terminals Screw
terminals
LED
pilot light 24 to
254 V AC/DC or 6 to 24 V AC/DC
Rated
operational Ith = 10 A; Ui = 415 V
Characteristics
of contact: AC
Ue = 380 V; le = 1,9 A ou
Ue = 240 V; le = 3 A ou
Ue = 120 V; le = 6 A
DC
Ue = 250 V; le = 0,27 A ou
Ue = 125 V; le = 0,55 A ou
Ue = 24 V; le = 2,87 A
Mechanical
durability Actuator: 5 million
operating cycles
Contact:
1 million operating cycles
