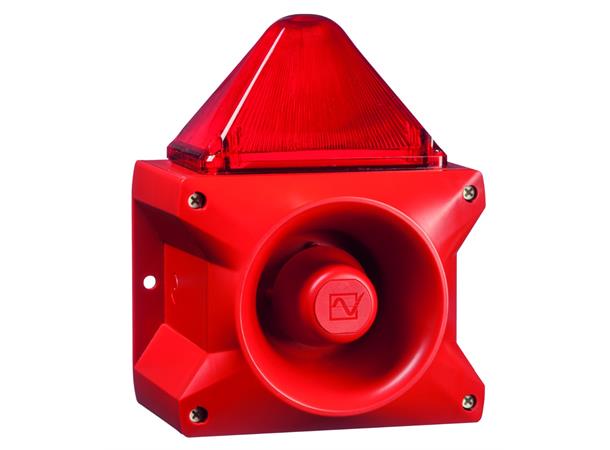

PA X 10-10
PATROL ® Flashing Sounders 117 dB(A) / 10 J
PATROL – the new generation of sounder/flashing light combinations. Three dimensional innovation;
- safe; an incorrect installation is virtually impossible
- easy; significantly shorter assembly and installation times
- economical; extremely high efficiency and good penetration of acoustical obstacles significantly reduce the required number of sounders
- pre-wired sounder and light ex works
- corresponding light intensity available for every sound pressure level
| Electrical data |
PA X 10-10 |
| Rated voltage |
230 V AC |
115 V AC |
24 V DC |
| Rated frequency |
50/60 Hz |
50/60 Hz |
- |
| Operating range |
187-255 V |
90-135 V |
18-30 V |
| Nominal current consumption |
160-215 mA |
260-345 mA |
665-935 mA |
