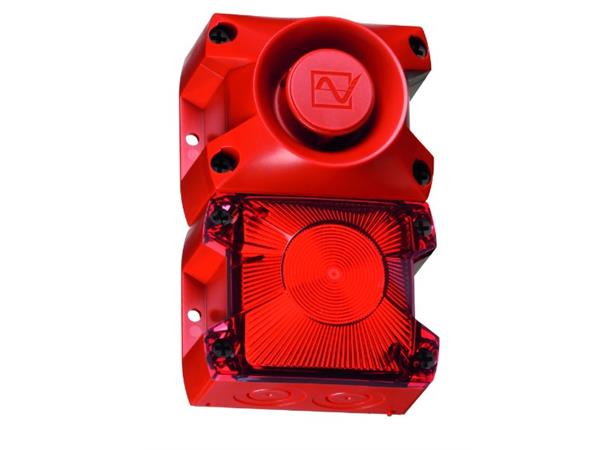

PA X 1-05
PATROL® Flashing Sounders 105 dB(A) / 5 J
PATROL – the new generation of sounder/flashing light combinations. Three dimensional innovation;
- safe; an incorrect installation is virtually impossible
- easy; significantly shorter assembly and installation times
- economical; extremely high efficiency and good penetration of acoustical obstacles significantly reduce the required number of sounders
- pre-wired sounder and light ex works
- corresponding light intensity available for every sound pressure level
| Electrical data |
PA X 1-05 |
| Rated voltage |
230 V AC |
115 V AC |
24 V DC |
| Rated frequency |
50/60 Hz |
50/60 Hz |
- |
| Operating range |
187-255 V |
90-135 V |
18-30 V |
| Nominal current consumption |
60-70 mA |
110-130 mA |
315-365 mA |
