Meinberg IMS Multi GNSS Receiver


Varenr: IMS-CLK GNS182-SQ
Alt. varenr: 27250

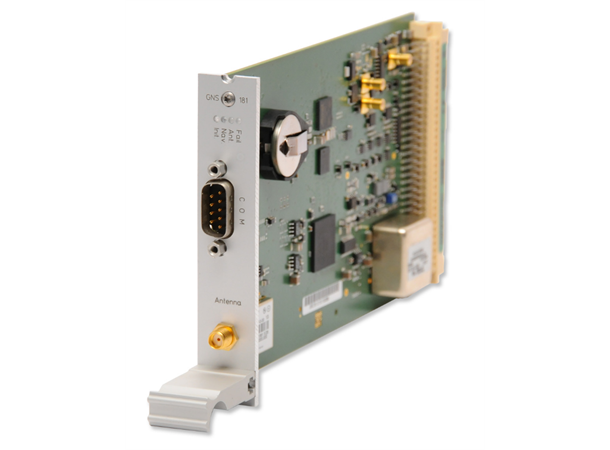

Meinberg IMS Multi GNSS Receiver SQ-oscillator
Clock Modules
Central clock module for the Meinberg IMS platform. The Multi GNSS receiver can use an external antenna to receive GPS, Galileo, GLONASS and Beidou satellite signals, decode them and use them as a reference source for the integrated, oscillator-based hardware clock. In addition to synchronizing with the GNSS systems, the IMS-GNS clock module accepts a wide range on input references when combined with IMS input cards.
  • RS232 interface
  • Antenna connected with up to 70m of coax cable type Belden H155
  • Compatible with IMS-CLK slots
  • Oscillator Options: OCXO-SQ, OCXO-MQ, OCXO-HQ, OCXO-DHQ
  • Combined 32-channel GPS/Galileo/Beidou/GLONASS receiver
