Meinberg GPSAV4 antenna distributor
Up to 4 GPS Receiver with one GPS antenna.
No additional Power Supply necessary.
Description
The GPSAV4 distributes the signal of a Meinberg GPS antenna/converter unit to up to four Meinberg GPS receivers. The integrated amplifier avoids distribution dissipations. The GPS receiver connected to the output no.1 is used to supply power to the GPSAV4, so this output has to be connected steadily while the others can be left unconnected.

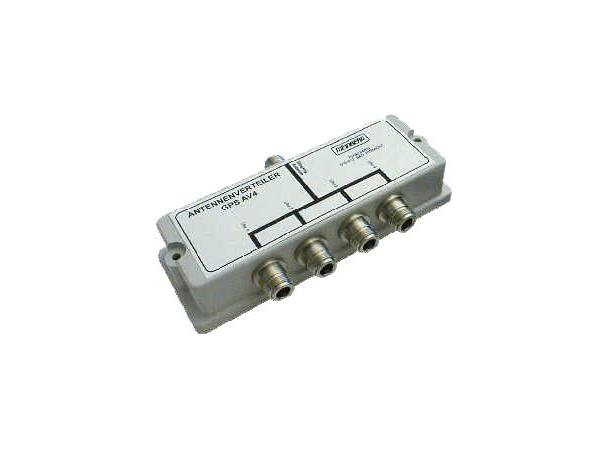

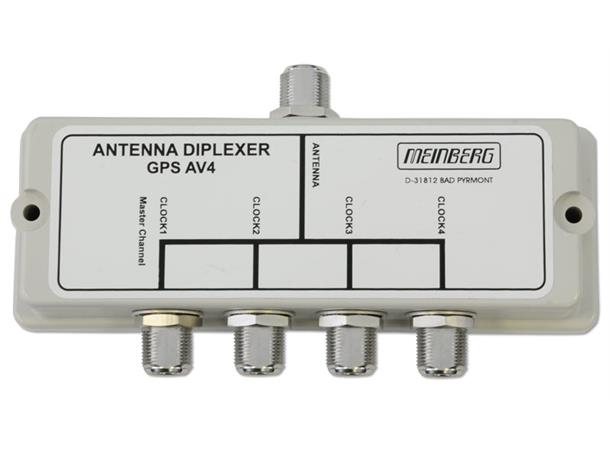

The distributor is installed in a plastic case with five type-N female connectors for input and outputs.
It's possible to build up a two or three level cascade by using Meinberg antenna distributors.
Characteristics
Gain: 0 ... +3dB
Physical dimensions: 182mm x 65mm x 37mm (width x depth x height)
Power supply: 12V ... 18VDC (from GPS receiver at output no.1)
Current consumption: ca. 20mA
Ambient temperature: 0 ... 50°C / 32 ... 122°F
Humidity: Max. 85%
RoHS-Status of the product: This product is fully RoHS compliant.
