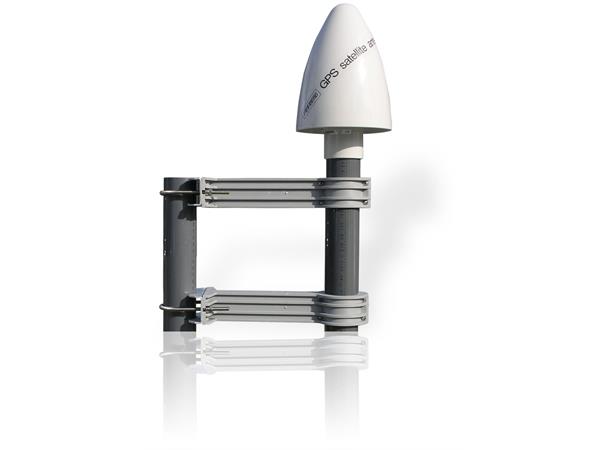

Meinberg GPS Antenna/Converter Unit

N-female connector- without cable

Varenr: GPSANT
8823

The GPS antenna combines a planar antenna and a frequency converter, which translates the high-frequency phase-modulated spread spectrum signal of the GPS system to an intermediate frequency. This way a standard coaxial cable (e.g. RG58) can be used for the connection with the GPS clock and a distance of up to 300 meters (with RG58) or even 700 meters (with a low-loss cable type like RG213) between receiver and antenna is possible without additional amplifier.



Frequency range

Antenna:
Receive frequency: 1575.42 MHz

Converter:
Local oscillator to converter frequency: 10 MHz
First IF frequency: 35,4 MHz

Physical dimensions Dimensions of the GPS Antenna - see datasheet.
Antenna connector type-N connector
Bandwith  9 MHz
Power supply 12V ... 18V, @ 100mA (provided via antenna cable)
Form Factor ABS plastic case for outdoor installation (IP66)
Product Weight 1.6kg with mounting kit
(Antenna cable 0.1kg / per meter)
Ambient temperature -40 ... 65°C
Warranty Three-Year Warranty
RoHS-Status of the product This product is fully RoHS compliant
WEEE status of the product This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself.
