Overview

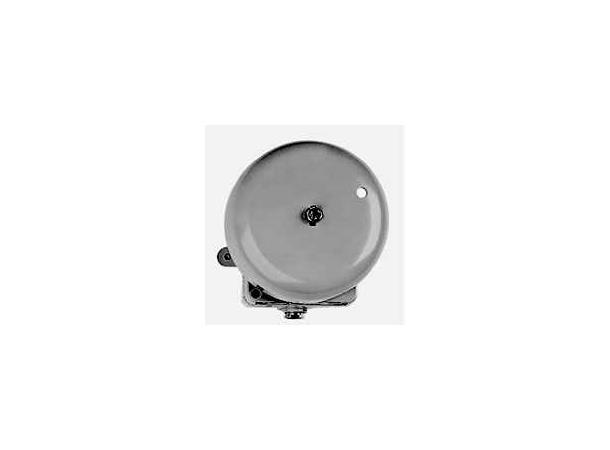

The signalling bells are used for clear calling, reporting and warning purposes as a high-pitched bell sound stands out clearly against ambient noise. Different dome sizes enable ideal signalling.
The drive system of the multi-stroke signalling bell consists of a single-coil electromagnet. In the AC variant a diode in the circuit enables a current flow in half period, so that the striker oscillates in time with the supply frequency. The DC types are equipped with a non-wearing electronic contact breaker. The stroke rate is approx. 50 strokes/sec.
Housing | Corrosion-resistant aluminium die cast with pebble grey varnish (RAL 7001) |
Bell dome | Steel flat dome, pebble grey (RAL 7001) 150 mm and 250 mm (steel flat dome 105 mm on request) |
Ingress Protection | IP 55 according to EN 60529 |
Protection class | I |
Cable gland | 1 x M20, for line diameters of 6-11 mm with integrated pressure balance function |
Connection terminals | Terminal capacity: 2.5 mm² fine-wire 4.0 mm² single-wire |
Volume | Approx. 100 to 110 dB(A), depending on dome size (in 1 m distance) |
Operating mode | Continuous operation for AW 1 and AW 2 Short-time operation 5 min for AW 3 and AW 4 |
Operating conditions | Indoors and outdoors |
Operating position | Striker facing downward |
Temperature range Operation Storage | -20 °C to +60 °C -30 °C to +70 °C |
