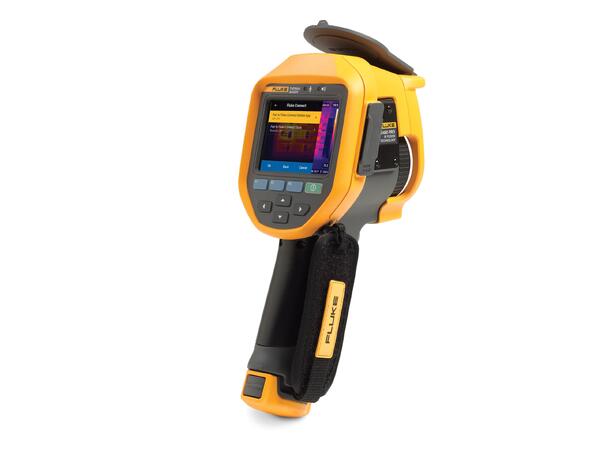

Fluke Ti480U / Ti401U / Ti300U Thermal Imagers
The NEW Fluke Ultra Series Thermal Cameras is designed to provide advanced visual infrared experience. It comes with a smart intuitive user interface, increased thermal sensitivity to capture the smallest differences and the latest technology for on-screen clarity. A professional 640 x 480 Infrared Camera with improved spatial resolution and UltraFocus focusing technology makes the Ti480U/401U/300U go-to camera range for the professional moving to the next level.
| Function Parameter | Fluke Ti480u | Fluke Ti401u | Fluke Ti300u |
| Basic Parameters | | | |
| IR resolution | 640 × 480 | 640 × 480 | 384 × 288 |
| SuperResolution | 1280 × 960 | | |
| Thermal sensitivity (NETD) @ 30 °C | 50 mk (0.05 °C) | 75 mk (0.075 °C) | 75 mk (0.075 °C) |
| Spectral response | 7 to 14 µm | 7 to 14 µm | 7 to 14 µm |
| Lens Field of View (FOV) | 25° x 19° | 25° x 19° | 25° x 19° |
| Spatial resolution (IFOV) | 0.68 mrad | 0.68 mrad | 1.14 mrad |
| Minimum imaging distance | 0.25 m | 0.25 m | 0.1 m |
| Lens focal distance | f 24.8 | f 24.8 | f 15 |
| Focus | Auto / Manual Focus | Auto / Manual Focus | Auto / Manual Focus |
| Lens recognition | Auto | Auto | Auto |
| Digital Zoom | 1-10x | 1-10x | 1-4x |
| Measurement Analysis | | | |
| Temperature range | -20 °C to 1200 °C | -20 °C to 650 °C | -20 °C to 650 °C |
| Temperature measurement rang | -20 °C to 120 °C | -20 °C to 120 °C | -20 °C to 120 °C |
| | 0 °C to 650 °C | 0 °C to 650 °C | 0 °C to 650 °C |
| | 300 °C to 1200 °C | | |
| Intelligent range | Yes | Yes | Yes |
| Temperature accuracy | ±2°C or 2% | ±2 °C or 2% | ±2 °C or 2% |
| Image Display | | | |
| Display Screen | 3.5" LCD, 640 × 480 | 3.5" LCD, 640 × 480 | 3.5" LCD, 640 × 480 |
| Image mode | Thermal/Visible image,PIP,Fusion | Thermal/Visible image,PIP,Fusion | Thermal/Visible image,PIP,Fusion |
| IR-Fusion | 0% to 100% | 0% to 100% | 0% to 100% |
